1/2" pvc tee to 1/2 poly

$4.40

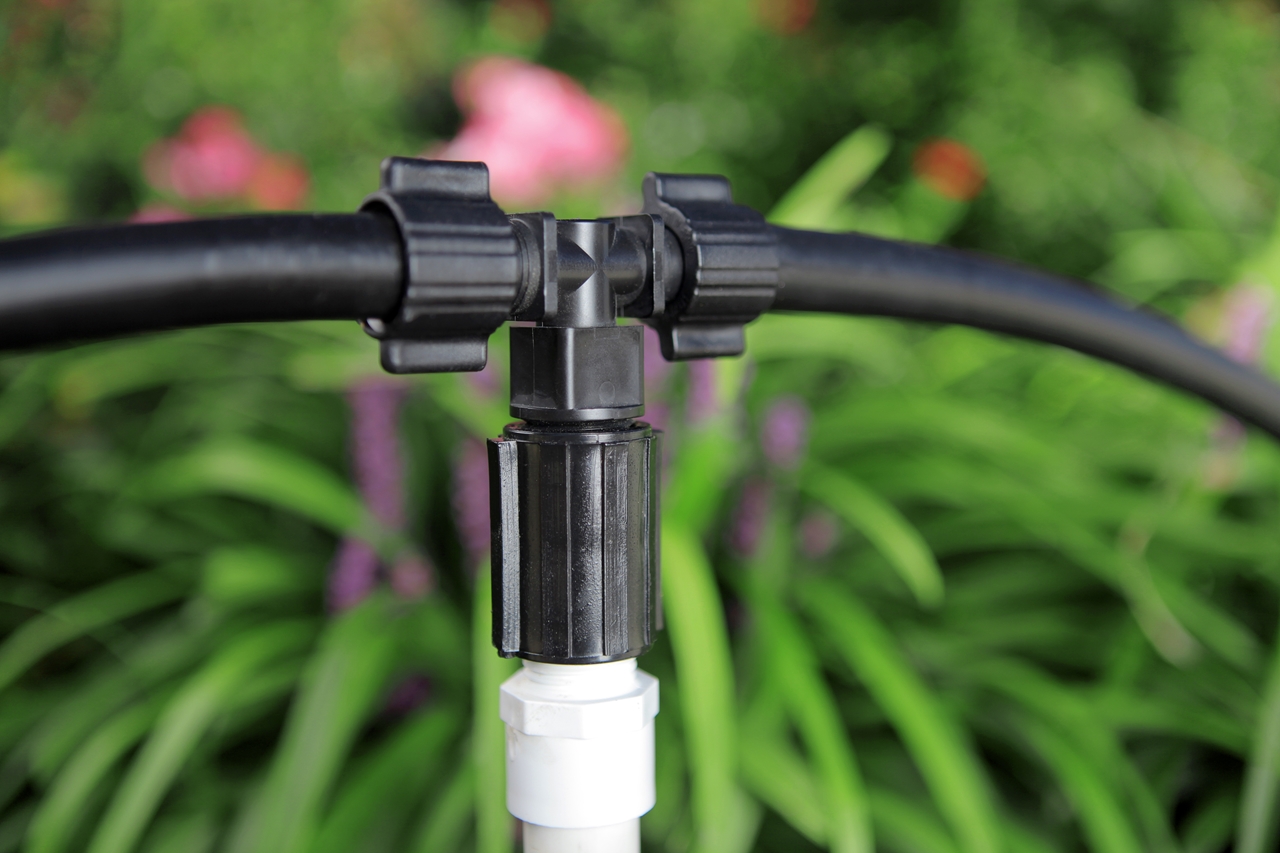

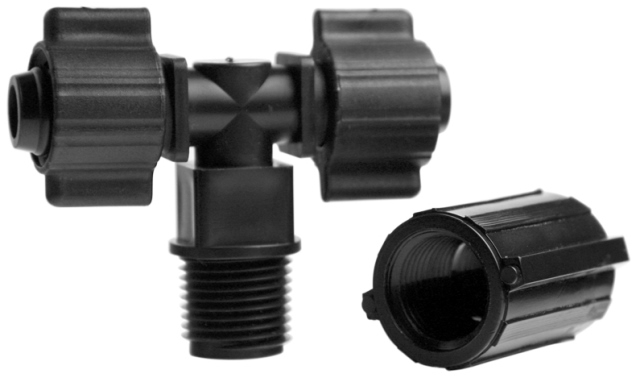

This Retrofit Tee Adapter has a 1/2-in male pipe thread inlet and a 1/2-in poly barb outlet with Locking Collar. (Qty 1)
Made in the USA
+ -

Use this fitting when attaching our 1/2-in poly tubing to run a water supply to micro or drip irrigation in opposite directions off an existing underground irrigation system

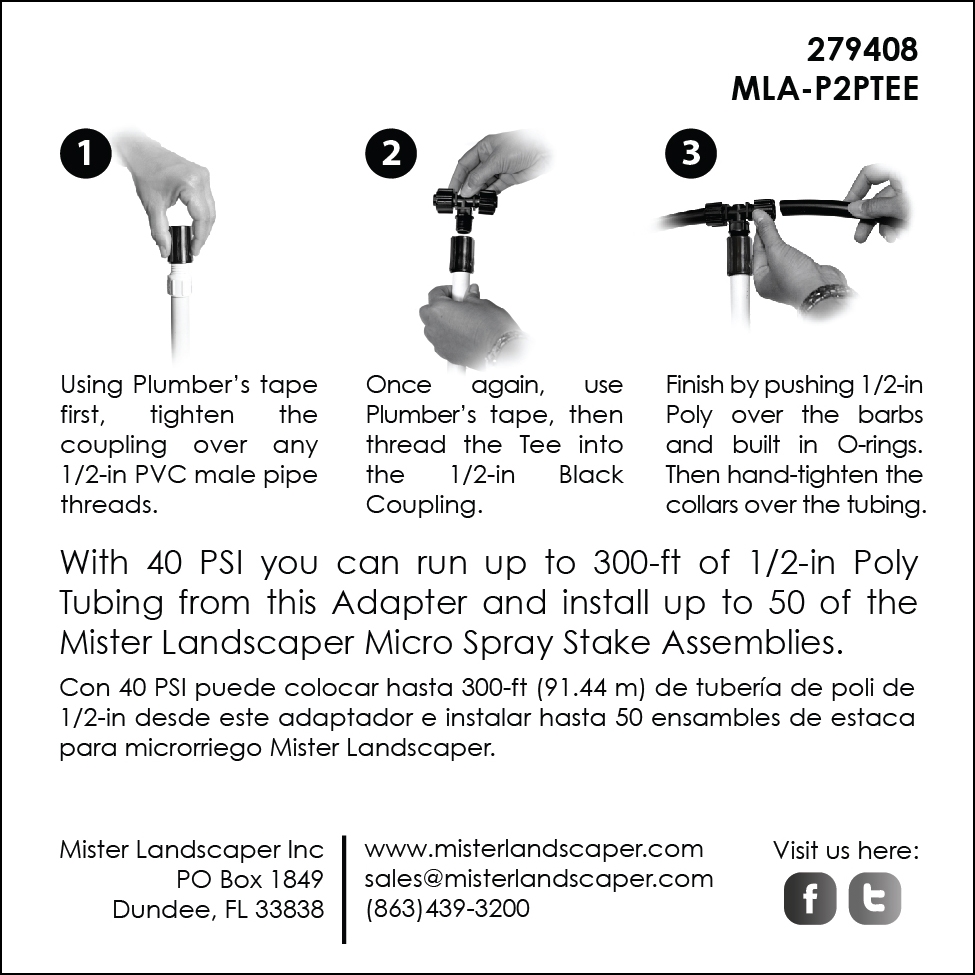

This fitting will attach to a PVC riser with a 1/2-in FNPT or if the riser had a 1/2-in MNPT then you can use the enclosed 1/2-in threaded coupling to join the 2 fittings

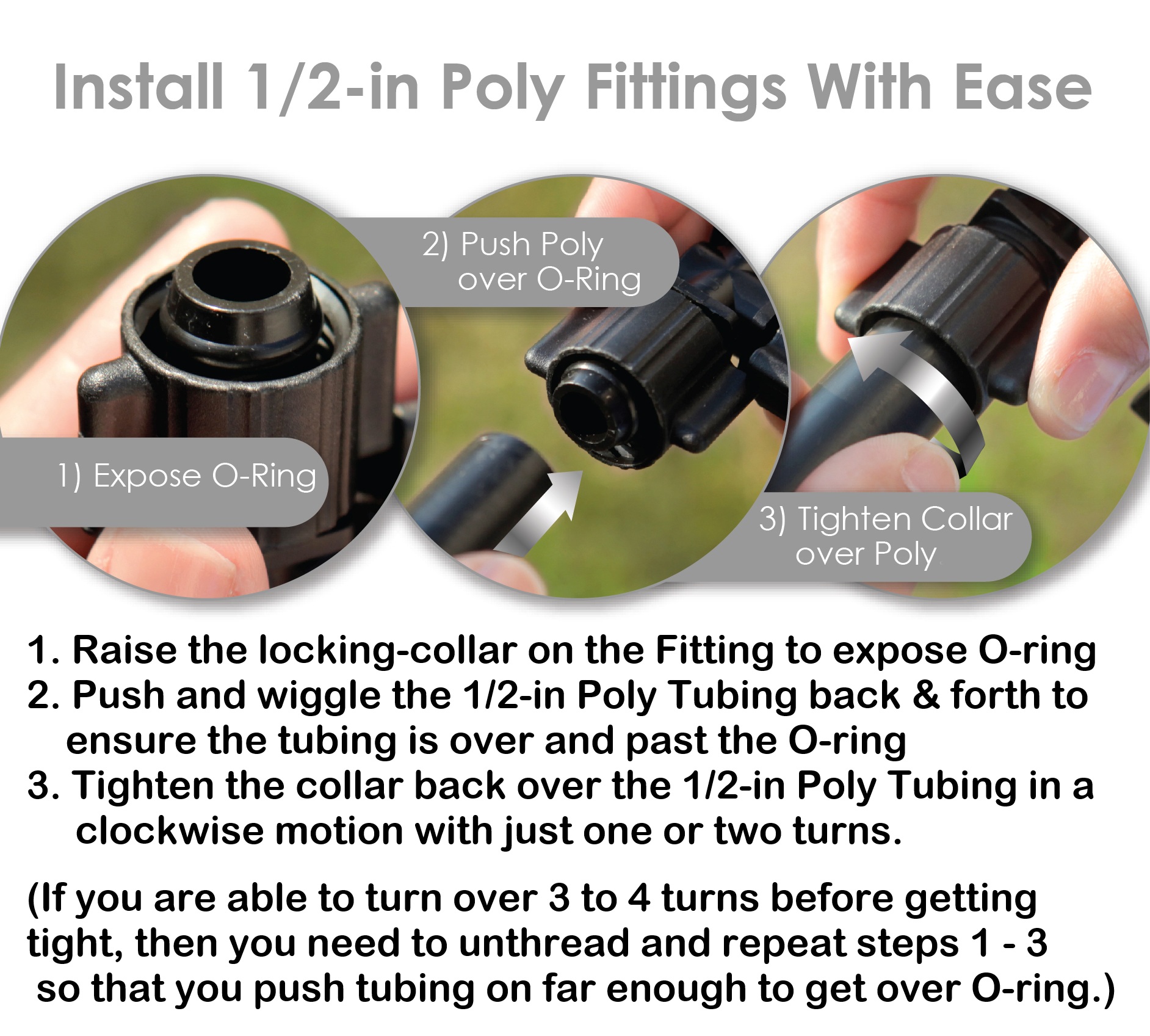

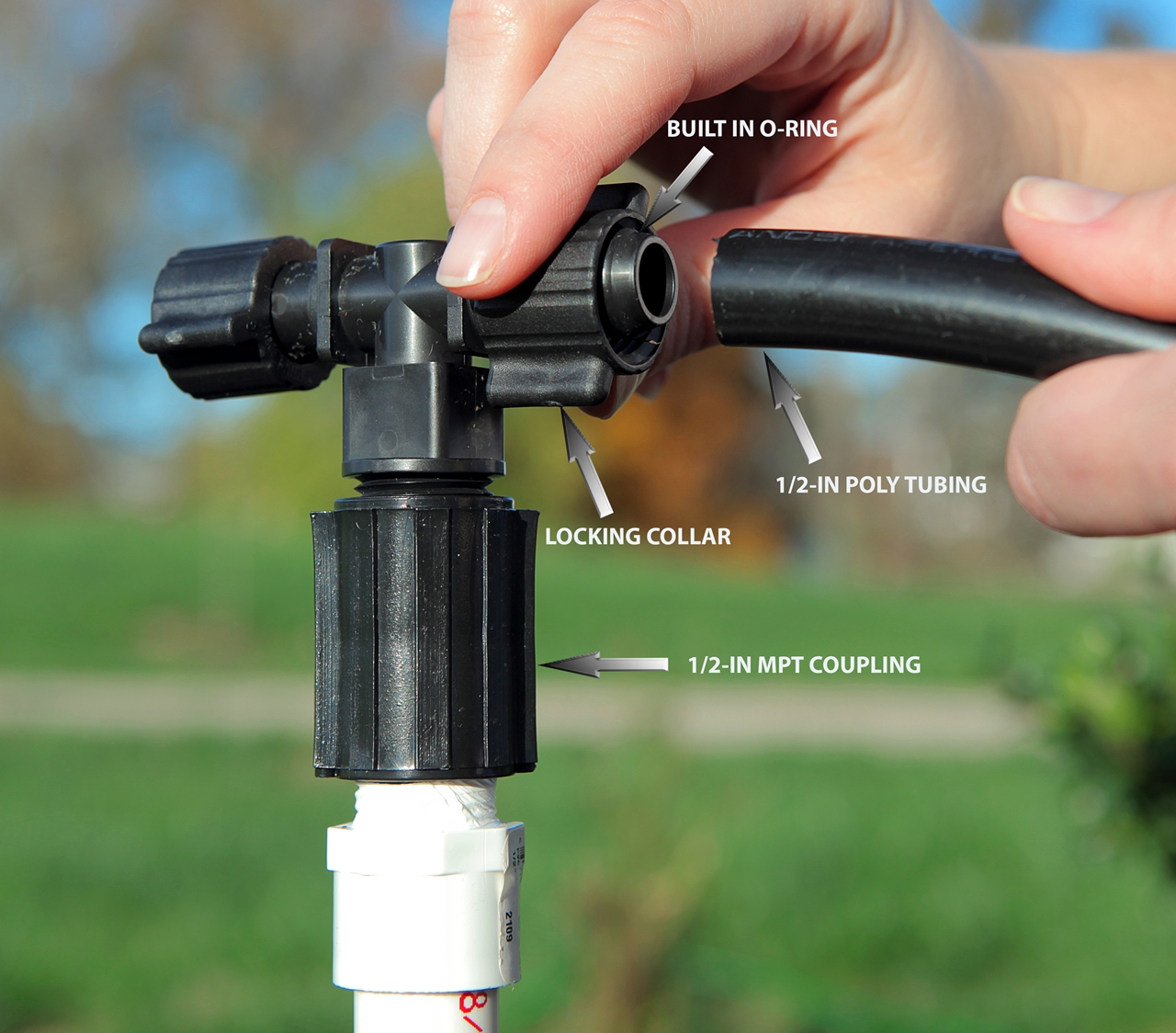

Once this fitting is attached to the PVC riser then next attach the 1/2-in poly tubing by first pushing back the locking collar to expose the barb with a built in O-ring

Next push and wiggle the 1/2-in poly onto the fitting and under the collar until snug

Now while holding the tubing with 1 hand turn the ears of the collar in a left counter clockwise motion to tightened and lock onto the 1/2-in poly tubing

This fitting can be uninstalled easily by unthreading the collar in a clockwise motion then by pulling off the 1/2-in poly

If you find it difficult to get the 1/2-in poly tubing onto the fitting, use a little olive oil or vegetable oil by wiping it on the inside of the wall of 1/2-in poly then push in the fittings

(1 Adapter Per Bag)
