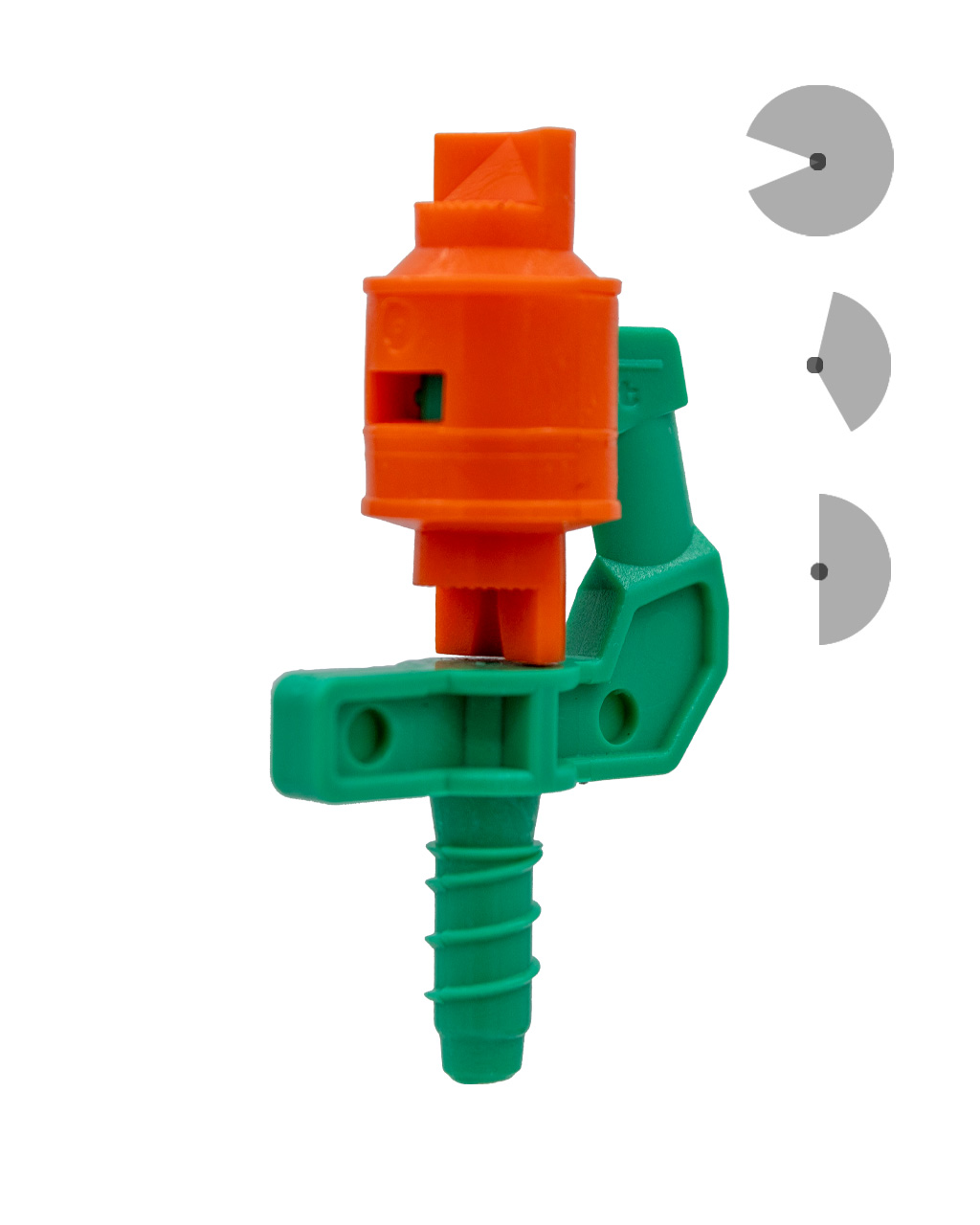

These 3-in-1 Swap Top Mister micro-spray give you 3 choices of spray patterns including a 320 flat fan spray, a 165, and a 180, halfcircle spray pattern
This 3-in-1 Swap Top Mister micro-spray is ideal for watering small areas, atriums, shrubs, small trees, plants, flowers, shrubs, and trees along walkways, fences, driveways, and the perimeter of a house
Easy to interchange the spray patterns by sliding off the swap top reversing it then sliding it back onto the G-shaped micro-spray mister

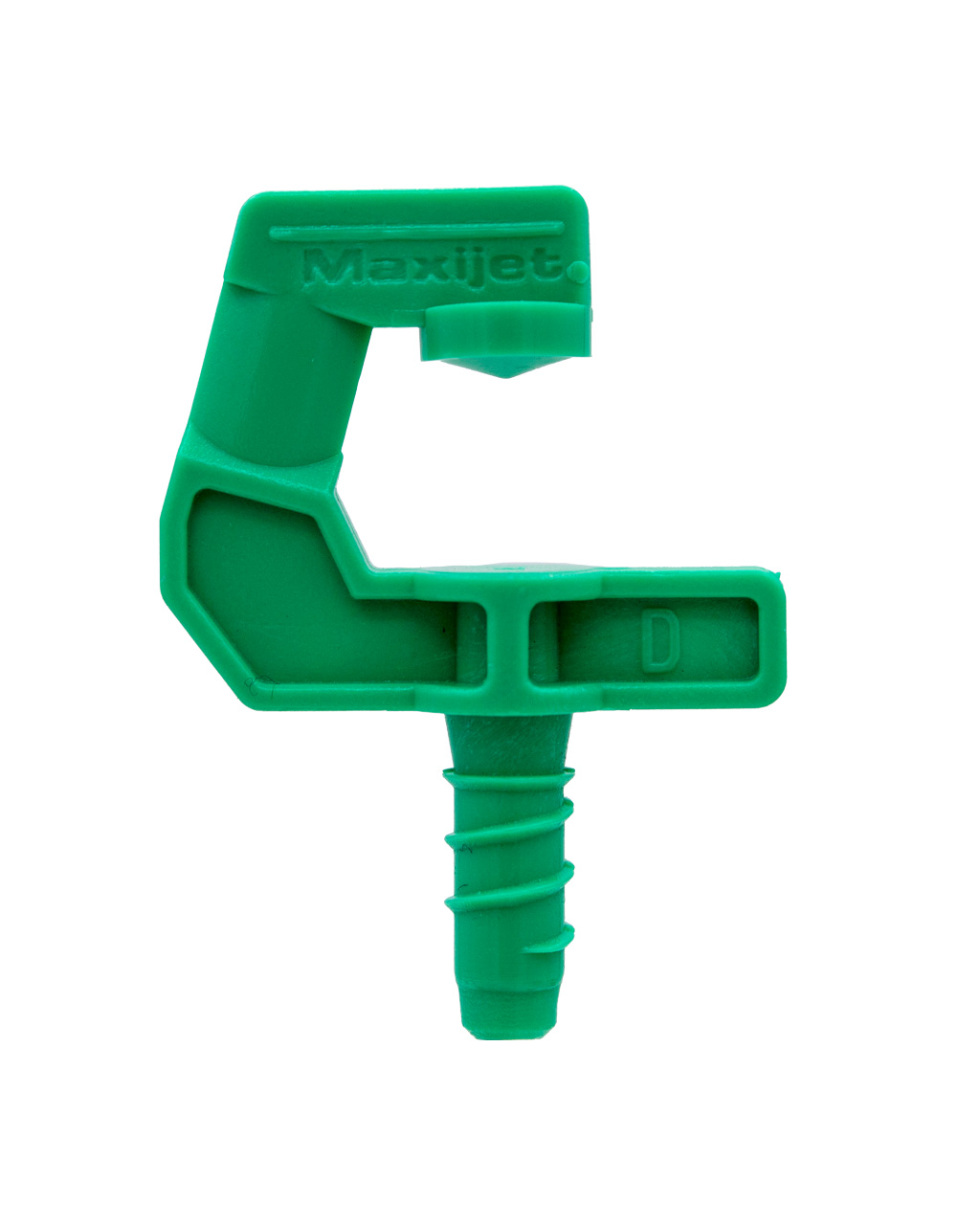

The green G shaped micro-spray is ideal for small landscapes, greenhouses and atriums giving a flat fan spray pattern and waters up to a 5-ft full circle area

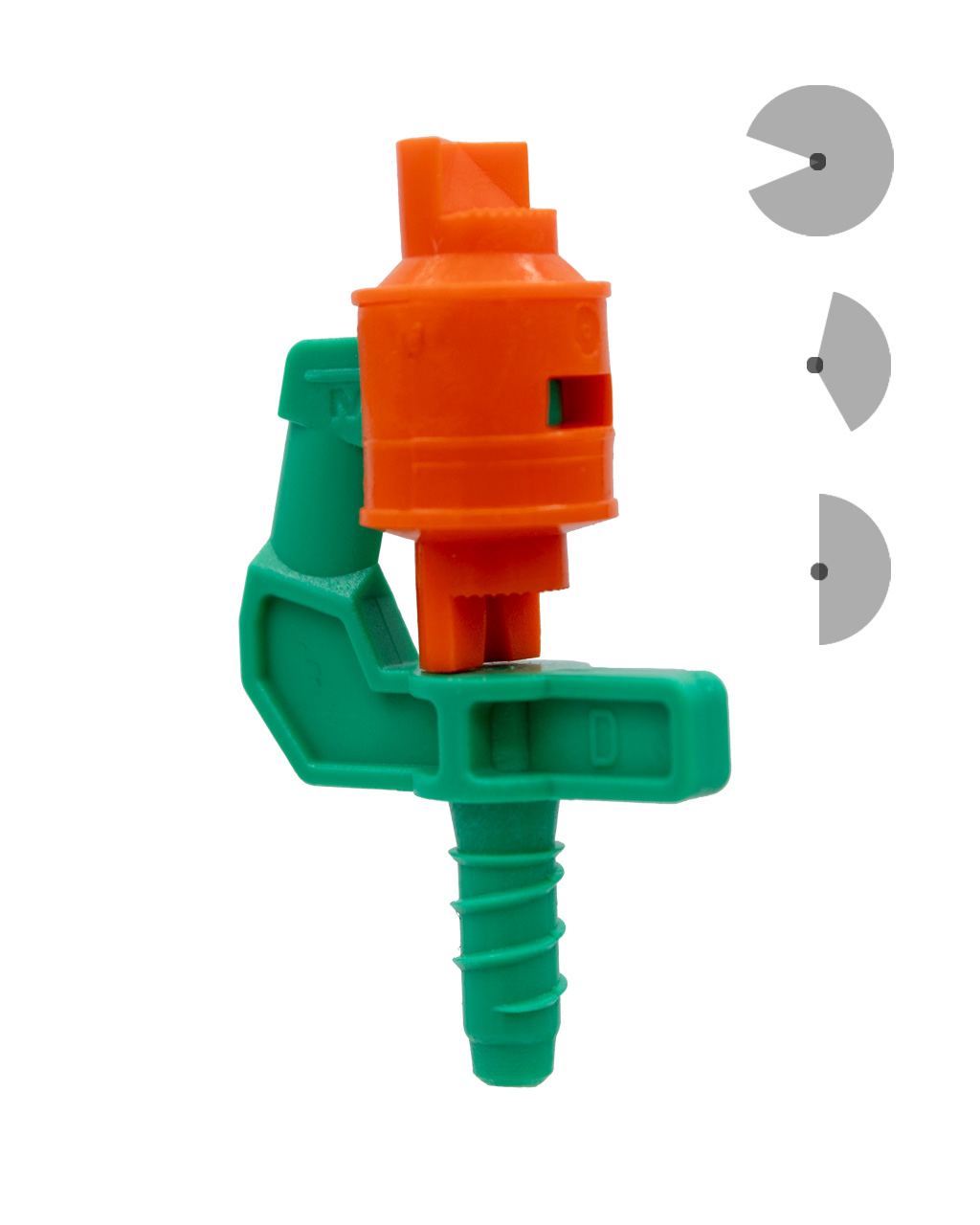

Slide the orange swap-top onto the green G shaped micro-spray you will receive on one side a 180? half circle fan pattern with a 4-ft radius and on the other side a 165? half circle 4-ft spray pattern that helps to keep water from spraying on house
When installed on top of our mister-riser assemblies (MLS-231) or any of our micro-stake assemblies (MLS-211, MLS-TAN, or MLS-BLA) this micro-spray will be flow-controlled to only use 10 GPH
(4 Misters Per Bag)
RECOMMENDATIONS & LIMITATIONS
When installing any irrgation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
The timer (MLWT-1ZONE, MLWT-TWOZONE or MLWT-EGG) must always be the first thing attached to the faucet, then the backflow prevention valve (MLF-31),pressure regulator (MLA-58),filter (MLFF-41), and then a poly faucet hose fitting (MLF-33)
When winterizing your system, before the first frost completely remove the timer and batteries and store inside
MAXIMUM RUNS
1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing installing up to 50 of our micro spray stake assemblies (MLS-211, MLS-BLA, MLS-TAN) or mister risers (MLS-231) off one faucet
Attach up to 6 of our micro spray kits (MLK-81, MLK-82T, MLK-LGH, or 1 MLK-LGH & 5 MLK-LADD) off one faucet
Minimum operating pressure for Micro Spray Stake Assemblies: 15 PSI
Maximum operating pressure for Micro Spray Stake Assemblies: 50 PSI
