1 GPH Dripper

Part # MLD-PC1
1 GPH P.C. Drippers with 1/4-in Couplers (QTY 4 of each)
+ -

These 1 GPH pressure compensated drippers are used to keep a constant flow of 1 GPH at various water pressures up to 25 PSI

Use this dripper to slowly water a potted plant or landscapes using only 1 GPH of water and they are ergonomically designed with a wide-winged top to make the installation easier

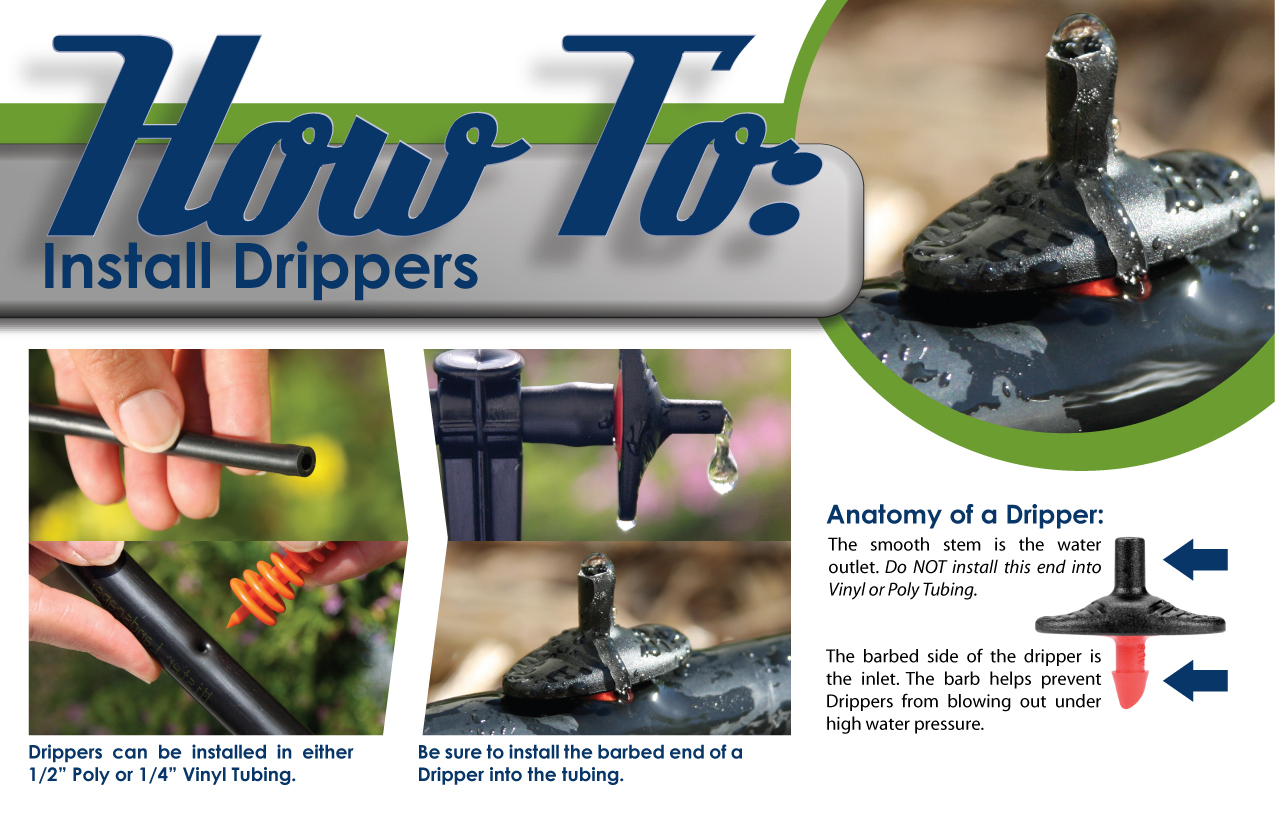

The water supply enters into the dripper from the barbed end and then the water is dispersed from the stem end

Install these drippers directly into the 1/2-in poly tubing by first snapping a hole using either of our punch tools (MLA-51 or MLA-TOOL) and use our goof plugs (MLA-51G) if you snap a hole in the wrong place or want to relocate the dripper

These drippers can also be installed by running a piece of 1/4-in vinyl tubing to the plant from the 1/2-in poly tubing using the enclosed 1/4-in barbed couplers, then by pushing in the dripper at the other end of the 1/4-in vinyl next to the plant

After the last dripper is installed, turn on the water and allow the flow of water to clean out any debris that may have entered the line during installation

Our 1/4-in support stakes (MLT-DST) can be used to securely hold the 1/4-in vinyl tubing and 1 GPH dripper near the plant

Also use our 1/4-in tees (MLT-TEE) and elbows (MLT-ATE) to run the 1/4-in vinyl tubing in opposing directions or in tight corners to supply water to these drippers.

(4 Drippers / 4 Couplers Per Bag)

Dripper made in Australia

Drippers and Drip Tubing can be covered with Mulch but we recommend NOT to bury them under the soil



When installing any irrgation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:

A 25 PSI pressure regulator (MLD-25PR) and a faucet filter (MLFF-41) are highly recommended to be used first at the water source when using these 1 GPH drippers



1/4-in Vinyl Tubing - Run up to 100-ft of our 1/4-in Vinyl Tubing installing up to 13 of the 1 GPH PC Drippers

1/2-in Poly Tubing - Run up to 500-ft of our 1/2-in Poly Tubing installing up to 250 of the 1 GPH PC Drippers

Minimum operating pressure for Drippers: 5 PSI

Maximum operating pressure for Drippers: 25 PSI
