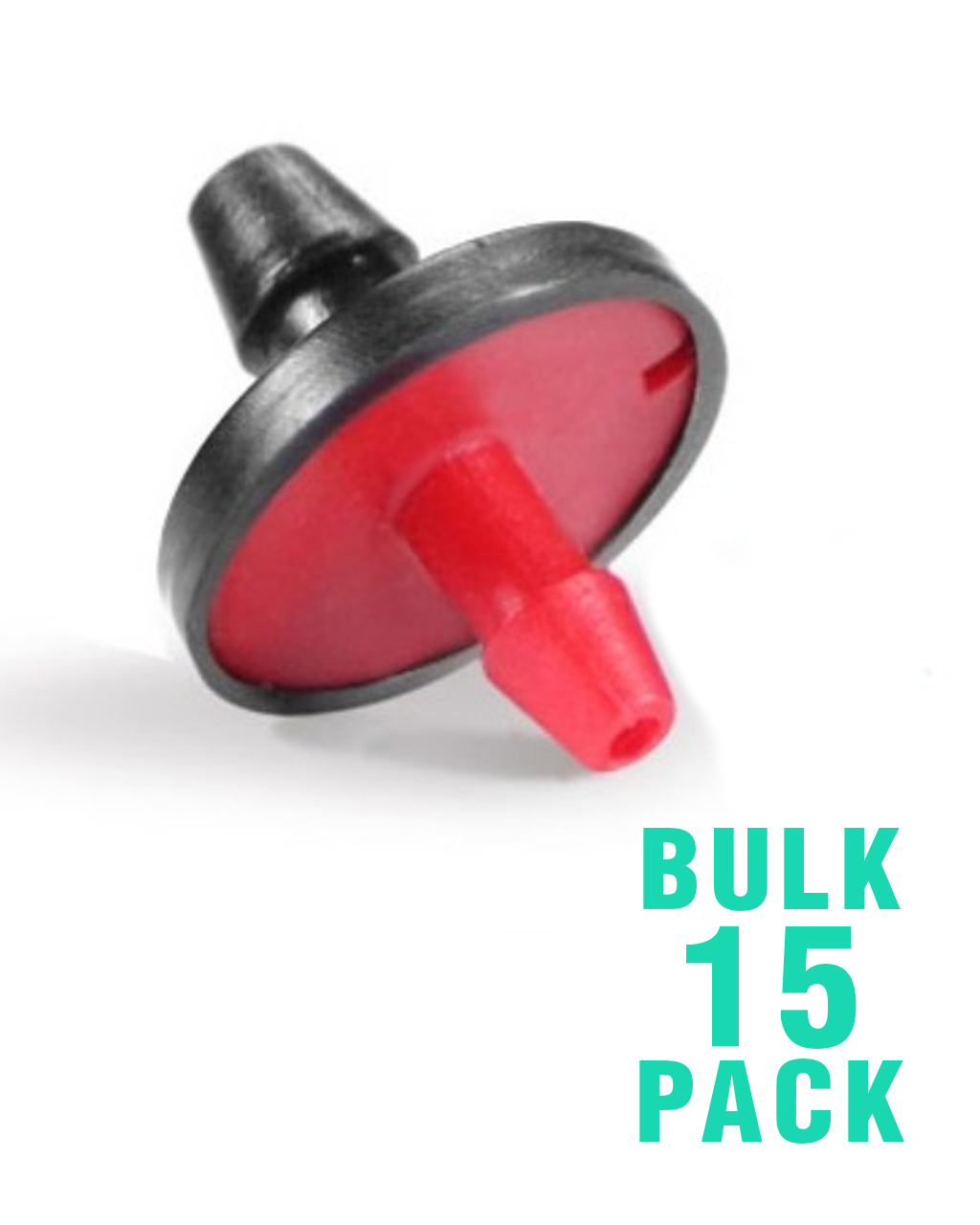

15 Count Package of 0.5 GPH Add-A-Drippers (BULK PACK) with No Couplers
Use these 0.5 GPH Add-A-Drippers to slowly and gently water window boxes flowers, rows of vegetables, potted plants and tree rings

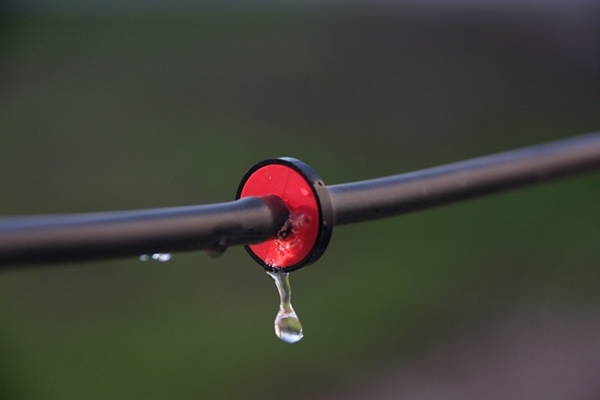

These 0.5 GPH Add-A-Drippers arein-line drippers that drip in the center so they can be added together using 1/4-in vinyl tubing to make a drip line
Push the red barbof the dripper into the end of the 1/4-in vinyl then attach to other end of the vinyl onto the black barb of the dripper
Use the enclosed 1/4-in coupler to attach the 1/4-in vinyl to the 1/2-in poly tubing
Repeat this last step until you have up to 30 of these drippers installed off a single 30-ft line of 1/4-in vinyl from the 1/-in poly tubing
After the last dripper in installed, turn on the water and allow the flow of water to clean out any debris that may have entered the line during installation and then put a short 2-in piece of vinyl on the black barb end of the dripper and then push in one of our goof plugs (MLA-51G) to end the 1/4-in line
Our 1/4-in support stakes (MLT-DST) can be used to securely hold the 1/4-in vinyl along the row of plants
Also use our 1/4-in tees (MLT-TEE) and elbows (MLT-ELB) to run the 1/4-in vinyl in opposing directions or in tight corners to supply water to these drippers
(15 Drippers)
. 5 GPH Add-A-Dripper made in Taiwan
Drippers and Drip Tubing can be covered with Mulch but we recommend NOT to bury them under the soil
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
A 25 PSi pressure regulator (MLD-25PR) and a faucet filter (MLFF-41) are highly recommended to be used first at the water source when using these 0.5 GPH Add-A-Drippers
MAXIMUM RUNS
1/4-in Vinyl Tubing - When installing, you can run up to 30-ft of 1/4-in Vinyl from the 1/2-in Poly and install up to 30 Drippers in a single line
1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing and connect up to 13 individual 30-ft runs of our 1/4-in Vinyl Tubing, installing up to 30 of our 0.5 GPH Add-A-Drippers per individual run
Drippers and Drip Tubing should NEVER be buried underground but can be covered lightly with Mulch
Minimum operating pressure for Drippers: 5 PSI
Maximum operating pressure for Drippers: 25 PSI
