Adjustable Drip

Part # MLD-ADB
$3.89
Adjustable Drippers with 1/4-in couplers. (QTY of 5 each)
Made in the USA
+ -
Video

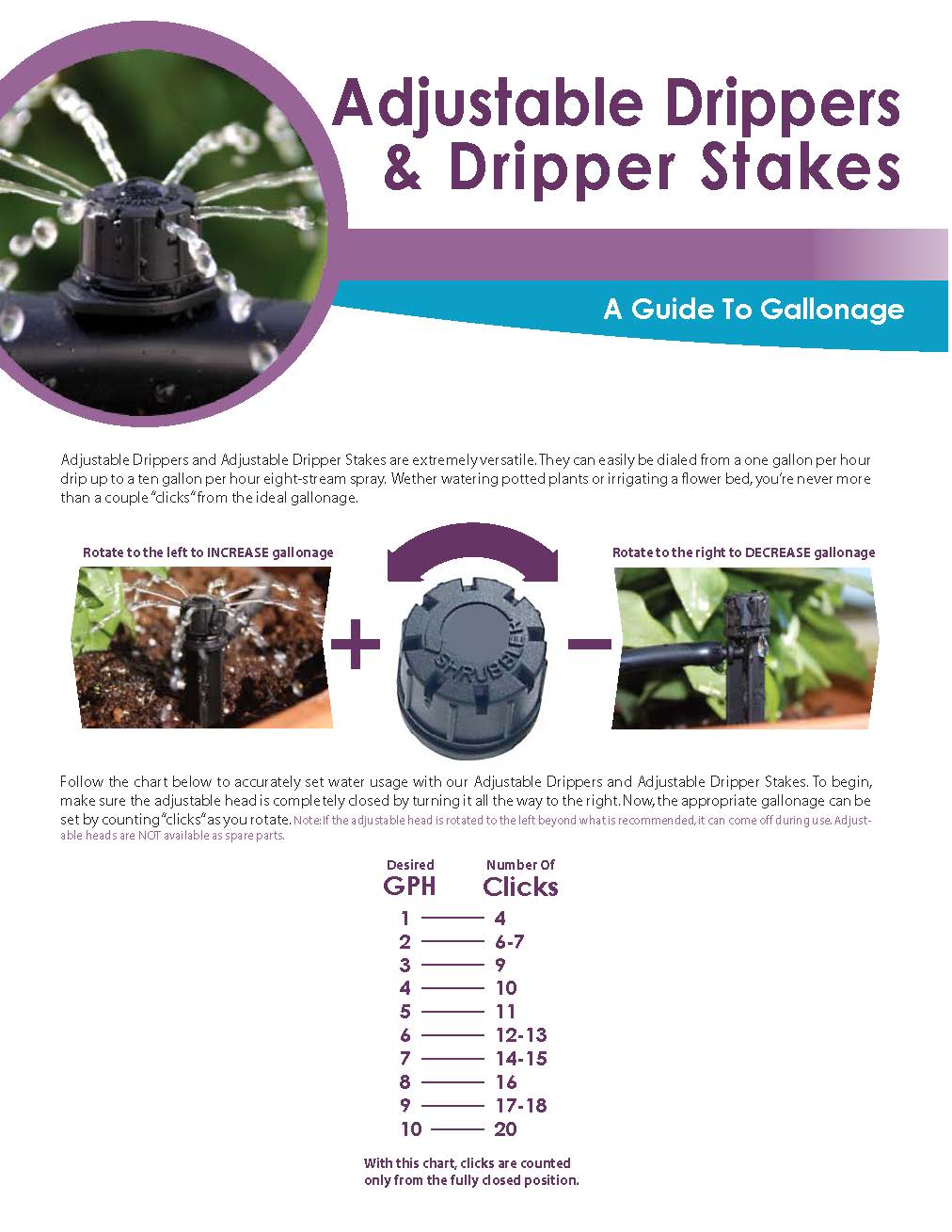

Each dripper is adjustable by turning the top dial to water from 0 to 10 GPH and releasing drops of water up to spraying 8 individual streams of water in a 3-ft diameter

When increasing the water output, be sure not to over rotate the top, as it can come off and become lost replacement caps (MLD-STACAP) can be purchased separately

Use these adjustable dripper stakes to gently water patio and potted plants or landscapes

Install these drippers directly into the 1/2-in poly tubing by first snapping a hole using either of our punch tools (MLA-51 or MLA-TOOL)

If you punch a hole in the wrong place or want to relocate the dripper then simply remove it from the 1/2-in poly and snap in one of our goof plugs (MLA-51G)

These drippers can also be installed by running a piece of 1/4-in vinyl tubing to the plant from the 1/2-in poly tubing using the enclosed 1/4-in barbed couplers, then by pushing in the dripper at the other end of the 1/4-in vinyl next to the plant

After the last dripper is installed, turn on the water and allow the flow of water to clean out any debris that may have entered the line during installation

Our 1/4-in support stakes (MLT-DST) can be used to securely hold the 1/4-in vinyl tubing and 1 GPH dripper near the plant

Also use our 1/4-in tees (MLT-TEE) and elbows (MLT-ATE) to run the 1/4-in vinyl tubing in opposing directions or in tight corners to supply water to these drippers.

(5 Drippers / 5 Couplers Per Bag)

Drippers and Drip Tubing can be covered with Mulch but we recommend NOT to bury them under the soil



RECOMMENDATIONS & LIMITATIONS

When installing any irrigation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:

A 25 PSI pressure regulator (MLD-25PR) and a faucet filter (MLFF-41) are highly recommended to be used first at the water source when using these adjustable dripper stakes



MAXIMUM RUNS

1/4-in Vinyl Tubing - Run up to 30-ft of our 1/4-in Vinyl Tubing installing no more than 8 Adjustable Drippers set to drip only, only 3 stakes can be used if set to wide open and maximum clicks using 10 GPH and small circle sprays

1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing installing up to 30 of the Adjustable Drippers that are wide open to 10 gph with a small stream spray or run up to 300-ft of our 1/2-in Poly Tubing installing up to 100 of the Adjustable Drippers with the top open to only use up to 2 gph with water dripping at 25 PSI at the faucet

Minimum operating pressure for Adjustable Drippers: 5 PSI for Dripping

Maximum operating pressure for Adjustable Drippers: 50 PSI for Spraying 8 Streams
