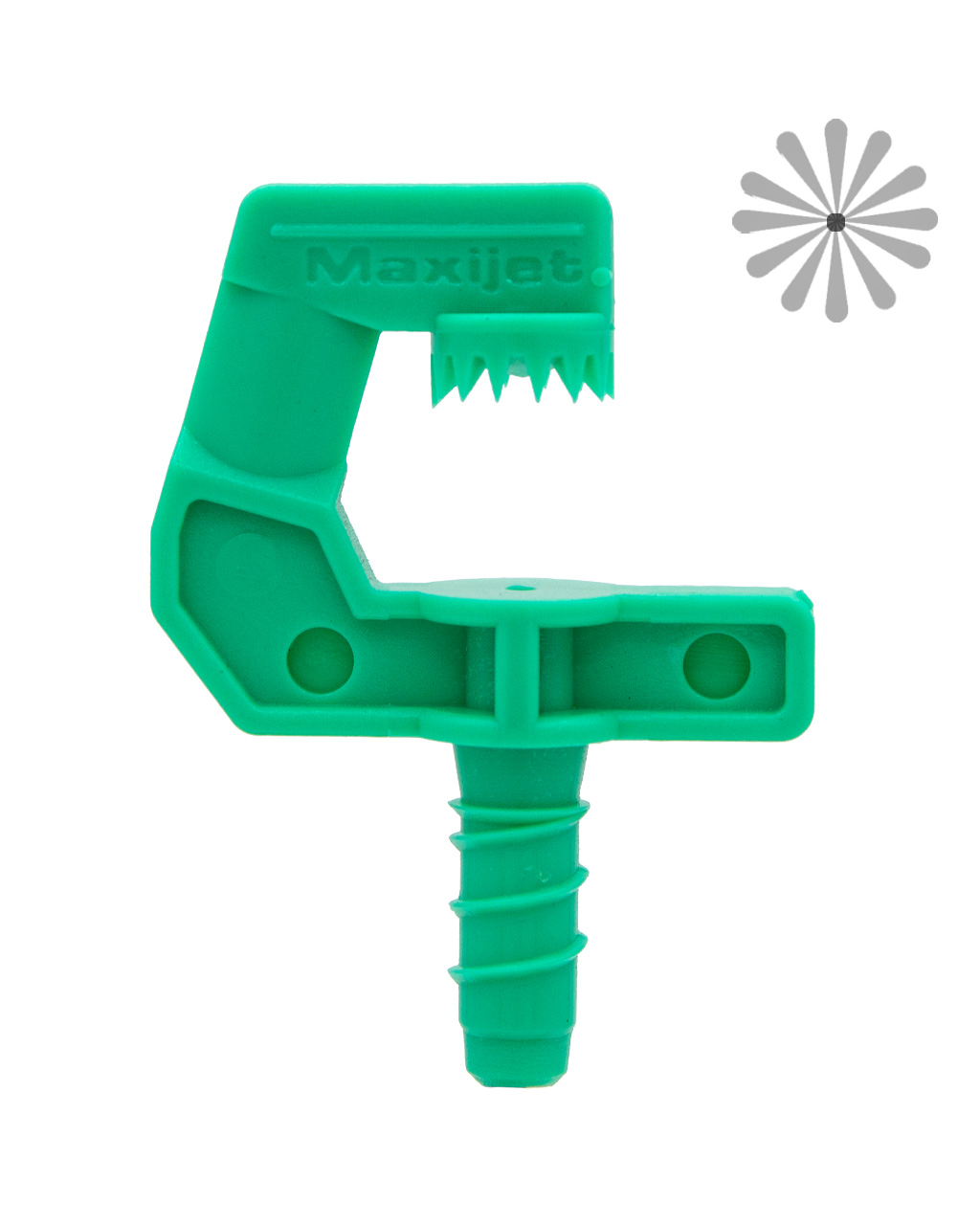

These micro-sprays give a large 360 x14 full circle stream spray pattern and a diameter coverage up to 13-ft to 16-ft
Ideal to use this 360 large circle micro-spray in the center of large landscapes, along hillsides, large trees and performs great in windy conditions
The angle of the spray has a slight upward arc to helps increase the distance of the water pattern to cover large areas
When installed on top of our mister-riser assemblies (MLS-231) or any of our micro-stake assemblies (MLS-211, MLS-TAN, or MLS-BLA) this micro-spray will be flow-controlled to only use 10 GPH
(5 Misters Per Bag)
(Made in the USA)
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system, it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
The timer (MLWT-1ZONE, MLWT-TWOZONE or MLWT-EGG) must always be the first thing attached to the faucet, then the pressure regulator (MLA-58), followed by the filter (MLFF-41), and then a poly faucet hose fitting (MLF-33)
When winterizing your system, before the first frost, completely remove the timer and batteries and store inside. You may also use our winterizing plug (MLA-WHTPLUG) to seal off your system for the winter. After removing the timer and the hose fitting from the faucet, simply thread the plug into the hose fitting to seal the line.
MAXIMUM RUNS
1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing installing up to 50 of our micro spray stake assemblies (MLS-211, MLS-BLA, MLS-TAN) or mister risers (MLS-231) off one faucet
Attach up to 6 of our micro spray kits (MLK-81, MLK-82T, or MLK-LG) off one faucet
Minimum operating pressure for Micro Spray Stake Assemblies: 15 PSI
Maximum operating pressure for Micro Spray Stake Assemblies: 50 PSI
