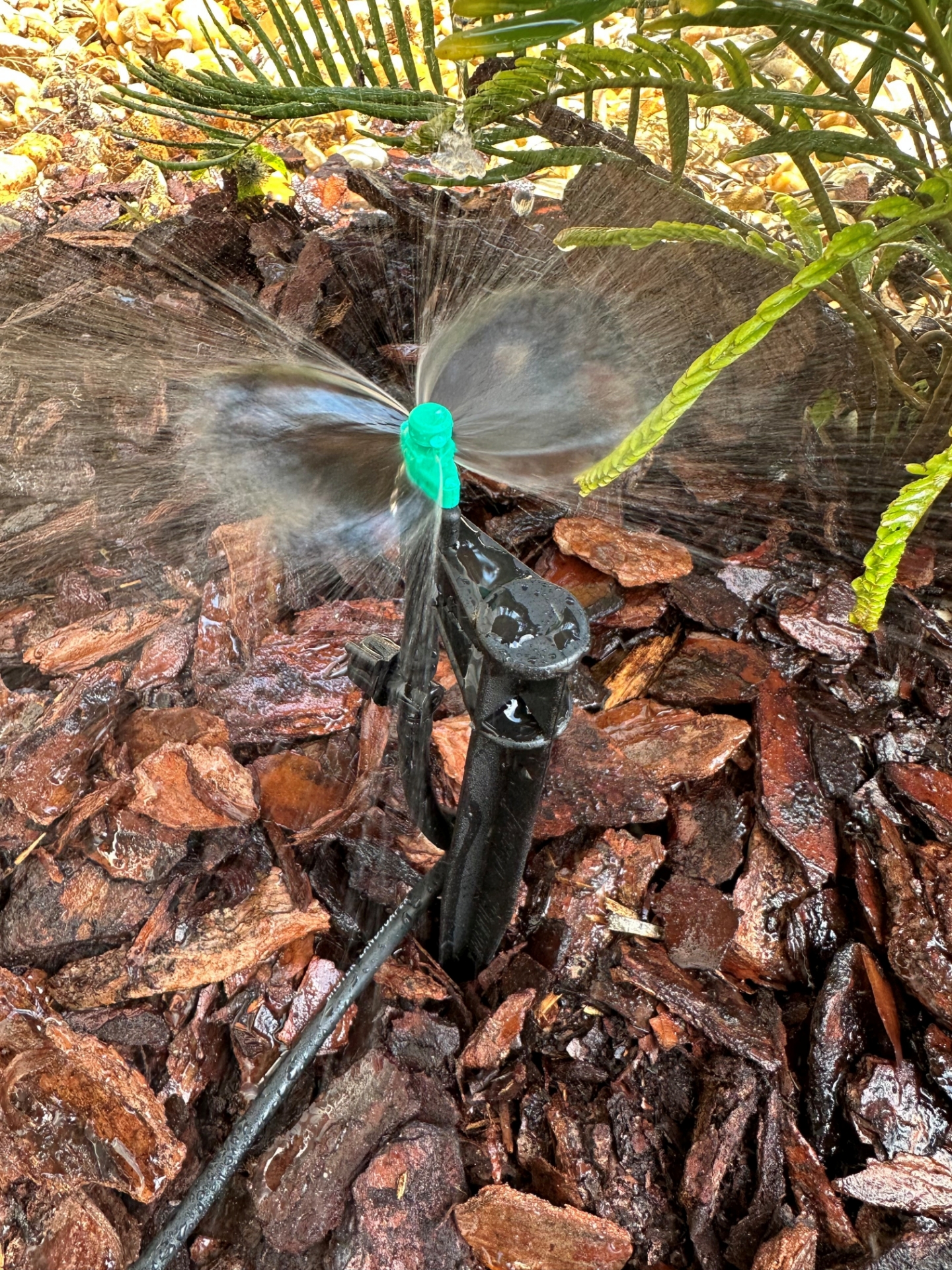

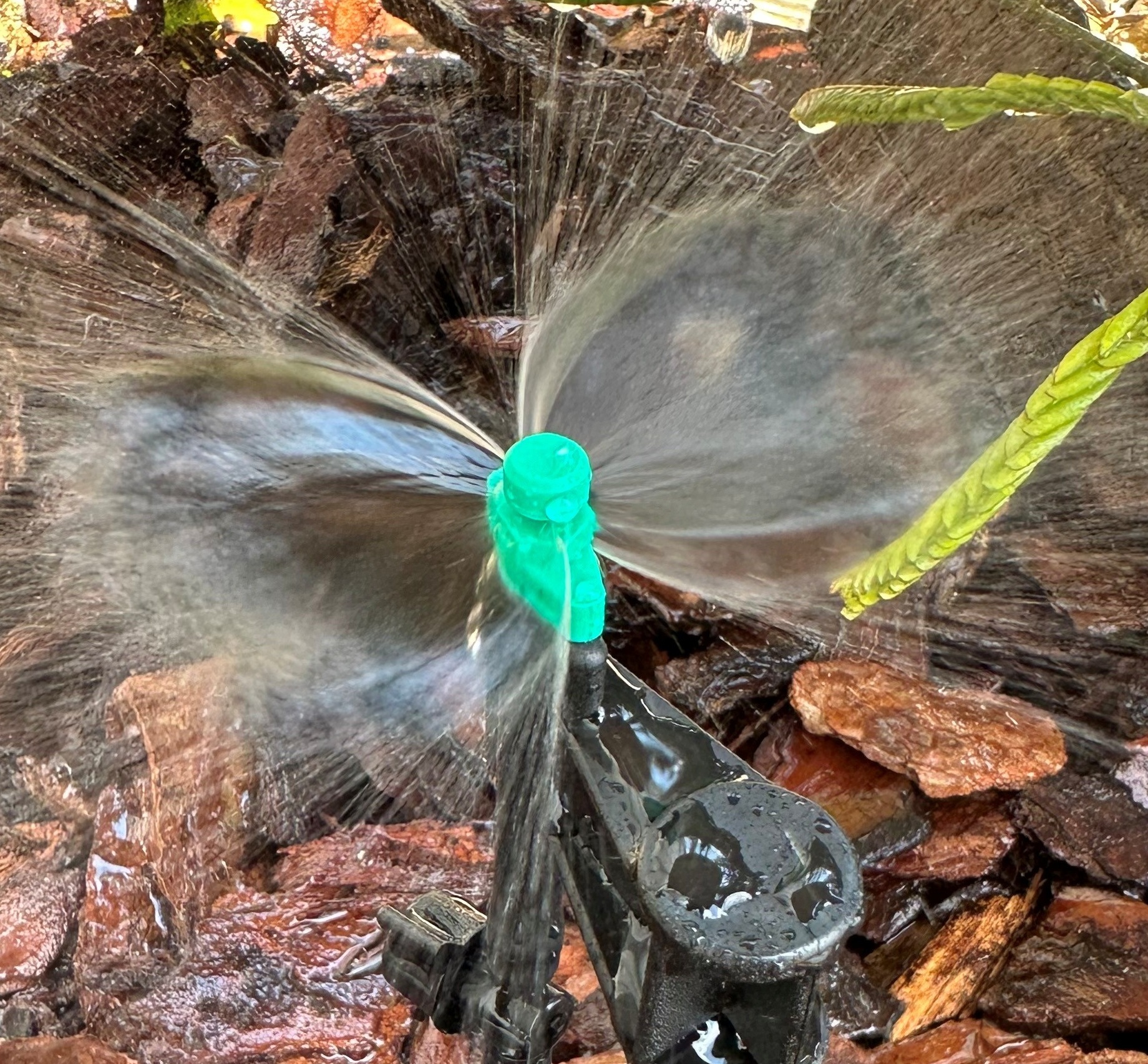

These micro-sprays give a 340° full circle spray pattern with a diameter coverage of 6-ft
Ideal to use this 340° full circle micro-spray to gently water landscapes and gardens along fences, walkways, driveways, and the perimeter of the house

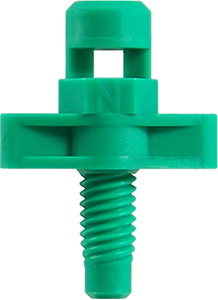

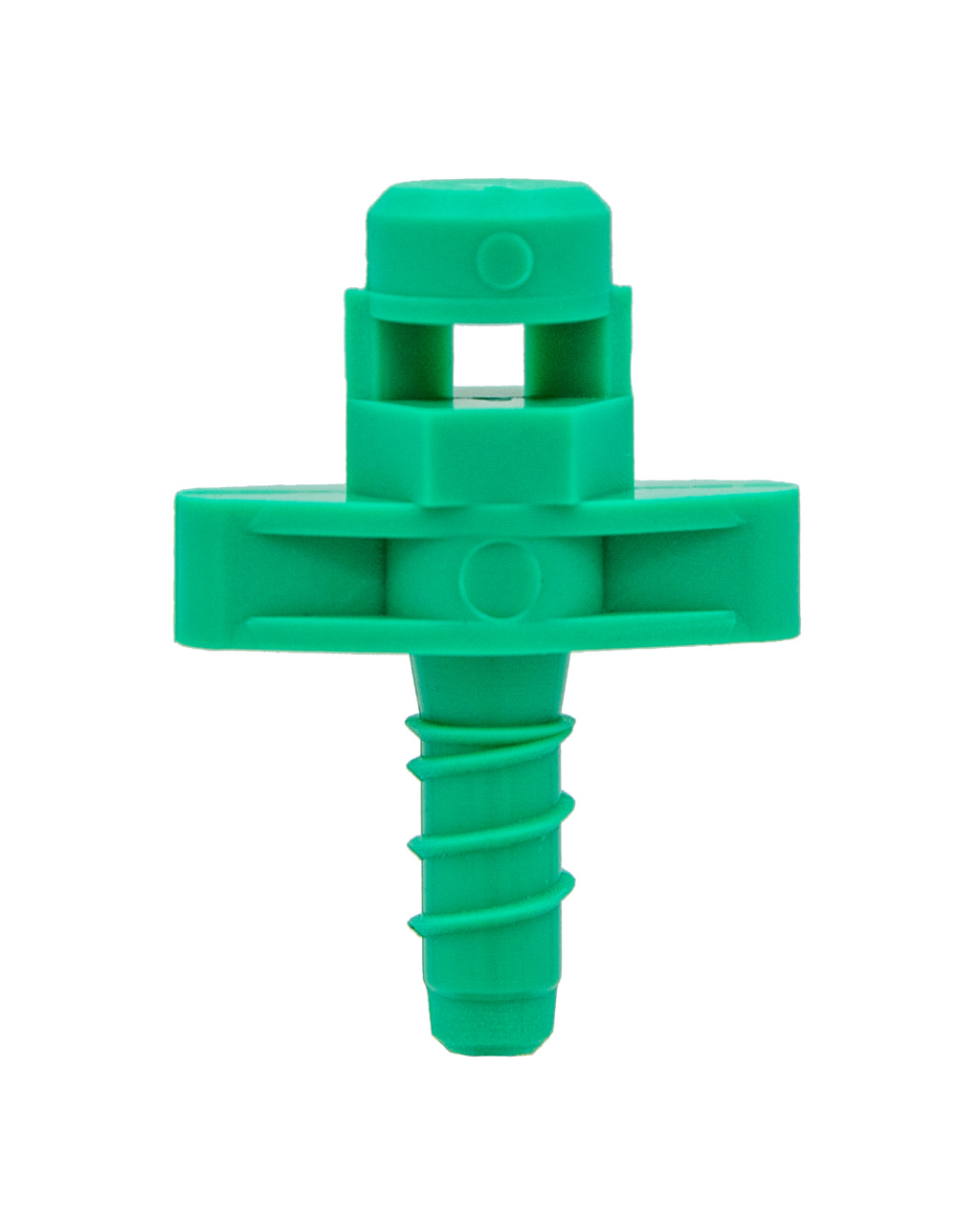

The wing shape makes it easy to thread into the mister-riser assembly or the 1/4-in vinyl and locking collar on top of the micro-stake assembly

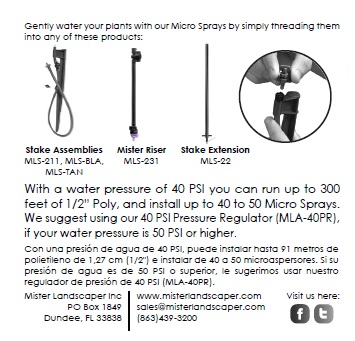

When installed on top of our mister-riser assemblies (MLS-231) or anyof our micro-stake assemblies (MLS-211), (MLS-BLA), or (MLS-TAN), this micro-spray will be flow restricted to only use approximately 10 GPH
(12 Micro-Sprays Per Bag)
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
The Timer (MLWT-1ZONE), (MLWT-TWOZONE) or (MLWT-EGG) must always be the first thing attached to the faucet, the the Backflow prevention valve if needed, then the Pressure Regulator (MLA-58), Filter (MLFF-41), and then a Poly Faucet Hose Fitting (MLF-33).
When winterizing your system, before the first frost, completely remove the timer and batteries and store inside. You can use our Winterizing Plug (MLA-WHTPLUG) to seal off your 1/2-in poly tubing for the winter.
MAXIMUM RUNS
1/2-Poly Tubing- Run up to 300-ft of our 1/2-in Poly tubing installing up to 50 of our Micro Spray Stake Assemblies (MLS-211), (MLS-BLA), or (MLS-TAN) or Mister Risers (MLS-231) off one faucet.
Attach up to 6 of our Micro Spray kits (MLK-81), or (MLK-82T) off one faucet
Minimum operating pressure for Micro Spray Stake Assemblies: 15 PSI
Maximum operating pressure for Micro Spray Stake Assemblies: 50 PSI
(Micro Spray Made in the USA)
