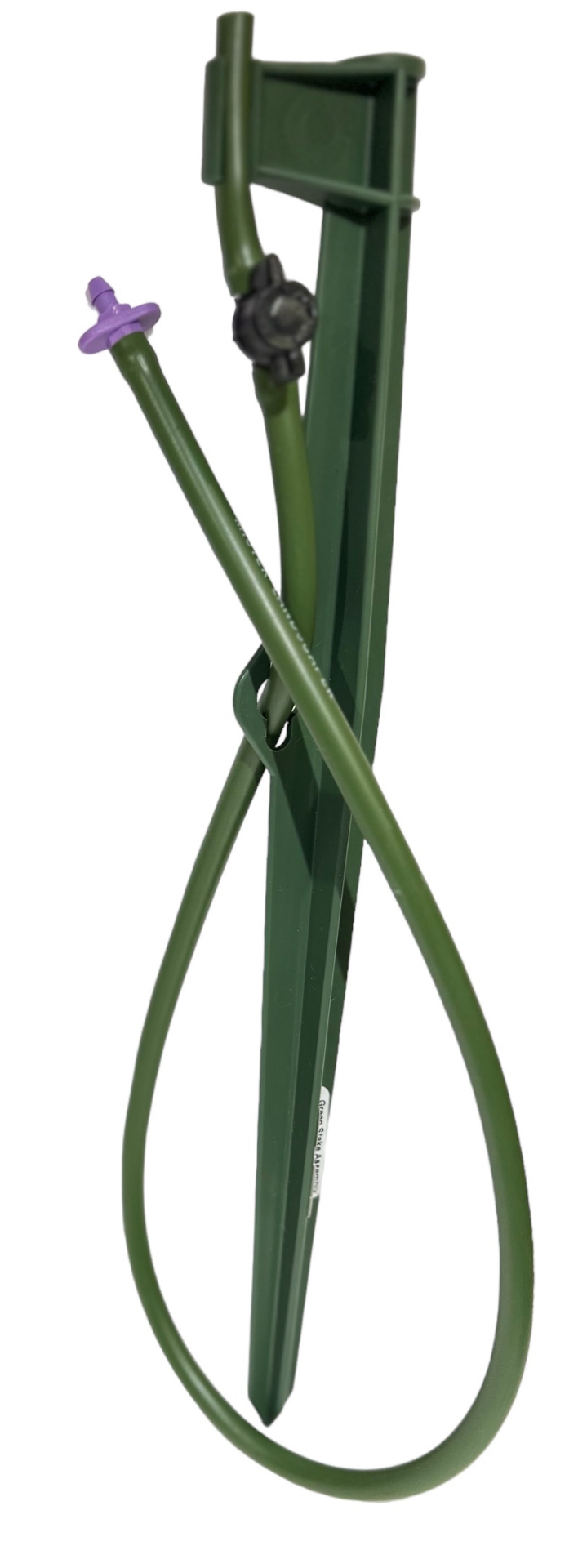

Assembly includes a 13-in green stake, vinyl collar, on/off valve, 27-in of green flexible vinyl and a NEW 9 to15 GPH Flow Restrictor
This newly designed and improved Violet Flow Restrictor (MLS-V10) minimizes clogging as it does not contain a diaphragm
Use 1 of our various micro-sprays (MLM-404, MLM-236, MLM-15, MLM-05, MLM-44, MLM-14F, MLM-03B, MLM-04, MLM-06, MLM-01, MLM-03, and (MLM-02) that are sold separately to give the spray pattern you want

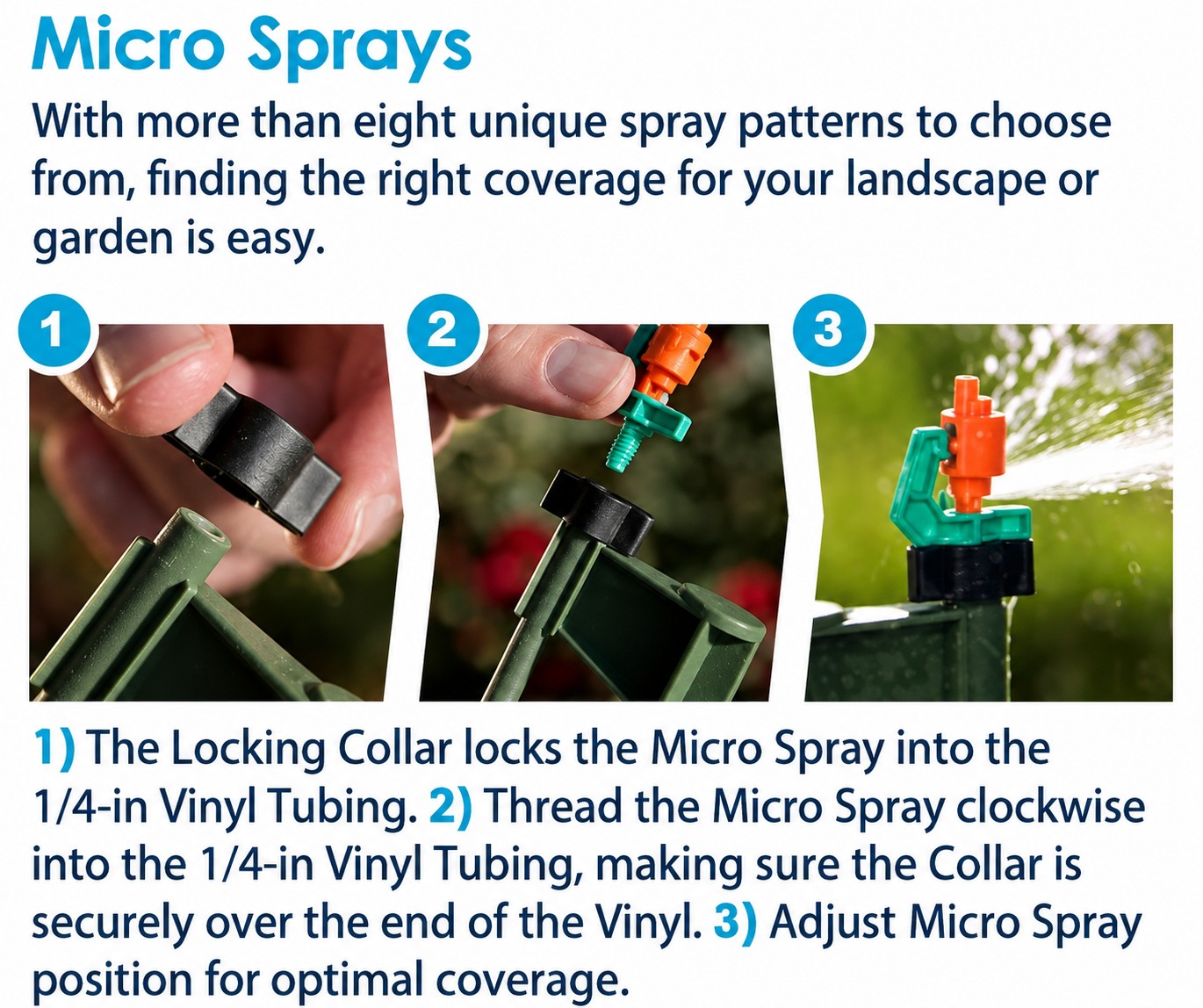

Use the enclosed locking vinyl collar (MLS-CLR) and push onto the 1/4-in vinyl and thread in the micro-spray
Use one of our punch tools (MLA-TOOL or MLA-51) to make a hole into the 1/2-in poly tubing to then snap in the barbed end of the violet coupler
Typically, these landscape micro-stake assemblies are placed every 6-ft to 8-ft apart throughout the landscape areas
The on/off valve (MLT-BVA) can be used to decrease the water flow and the distance of the micro-spray pattern along with turning the water supply off to the micro-spray for areas of the landscape with annuals, perennials, or a plant that is no longer in season
(Made in the USA)
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system, it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
The timer (MLWT-1ZONE, MLWT-TWOZONE or MLWT-EGG) must always be the first thing attached to the faucet, then the pressure regulator (MLA-58), followed by the filter (MLFF-41), and then a poly faucet hose fitting (MLF-33)
When winterizing your system, before the first frost completely remove the timer and batteries and store inside. You can use our Winterizing Plug (MLA-WHTPLUG) to seal off the 1/2-in poly tubing for the winter.
MAXIMUM RUNS
1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing installing up to 40 of our micro spray stake assemblies (MLS-211, MLS-BLA, MLS-TAN) or mister risers (MLS-231) off one faucet
Attach up to 6 of our micro spray kits (MLK-81, MLK-82T, or MLK-LG) off one faucet
Minimum operating pressure for Micro Spray Stake Assemblies: 15 PSI
Maximum operating pressure for Micro Spray Stake Assemblies: 50 PSI
