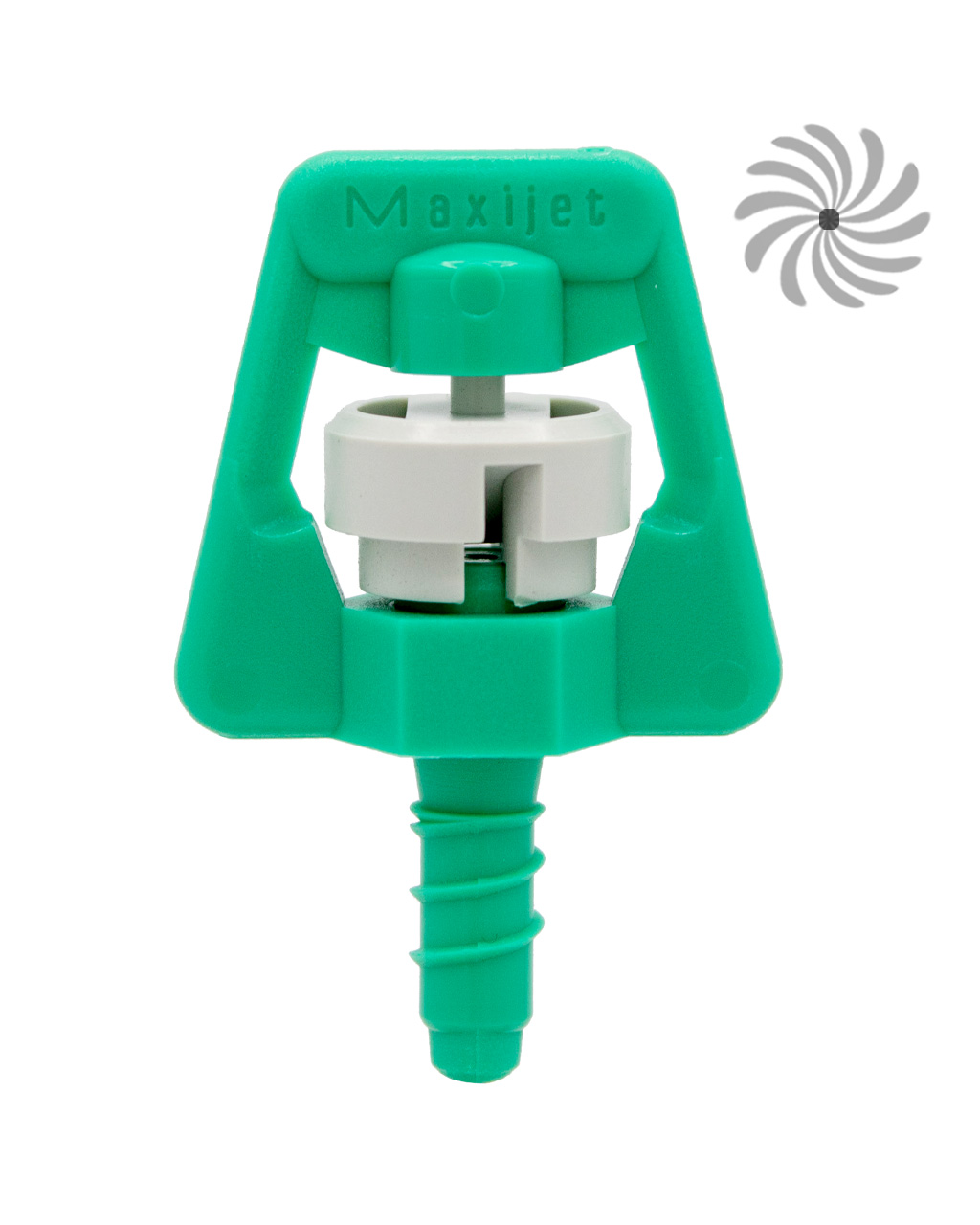

These micro-spray spinners rotate the water giving a 360 full circle spray pattern with a diameter coverage up to 10-ft to 12-ft
Ideal to use this 360 large circle micro-sprinkler in the center of landscapes, flowerbeds, greenhouses, gardens and for large trees
The wing shape makes it easy to thread into the mister-riser assembly or the 1/4-in vinyl and locking collar on top of the micro-stake assembly
When installed on top of our mister-riser assemblies (MLS-231) or any of our micro-stake assemblies (MLS-211, MLS-TAN, or MLS-BLA) this micro-spray will be flow-controlled to only use 10 GPH
(10 Misters Per Bag)
RECOMMENDATIONS & LIMITATIONS
When installing any irrgation system it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
The timer (MLWT-1ZONE, MLWT-TWOZONE or MLWT-EGG) must always be the first thing attached to the faucet, then the backflow prevention valve (MLF-31),pressure regulator (MLA-58),filter (MLFF-41), and then a poly faucet hose fitting (MLF-33)
When winterizing your system, before the first frost completely remove the timer and batteries and store inside
MAXIMUM RUNS
1/2-in Poly Tubing - Run up to 300-ft of our 1/2-in Poly Tubing installing up to 50 of our micro spray stake assemblies (MLS-211, MLS-BLA, MLS-TAN) or mister risers (MLS-231) off one faucet
Attach up to 6 of our micro spray kits (MLK-81, MLK-82T, or MLK-LG) off one faucet
Minimum operating pressure for Micro Spray Stake Assemblies: 15 PSI
Maximum operating pressure for Micro Spray Stake Assemblies: 50 PSI
