This Micro Sprinkler Landscape & Garden "Bucket" Kit can water up to 250 sq. ft. of landscapes, gardens, shrubs, trees, and more! This kit connects directly to an outdoor water faucet and comes with everything needed to get your low-volume irrigation system up and running.
The Kit includes a Product Guide showing the benefits and uses of a Mister Landscaper low-volume irrigation system.
This kit includes:
RECOMMENDATIONS AND LIMITATIONS
When installing any irrigation system, it is important to be aware of any manufacturer recommendations and potential system limitations. Please be aware of the following:
ORDER OF INSTALLATION
Order of installation is critical for proper system function. Some parts mentioned here are NOT included in this kit but can be purchased separately. This is the order in which parts should be installed, starting from an outdoor water faucet.
1) Check your outdoor faucet to make sure there is an attached or built-in Brass Anti-Siphon Vacuum Breaker that’s designed to prevent the backflow of fluids back into the potable/drinking water system.
2) A metal "Y" Fitting is suggested so you can still attach your garden hose.

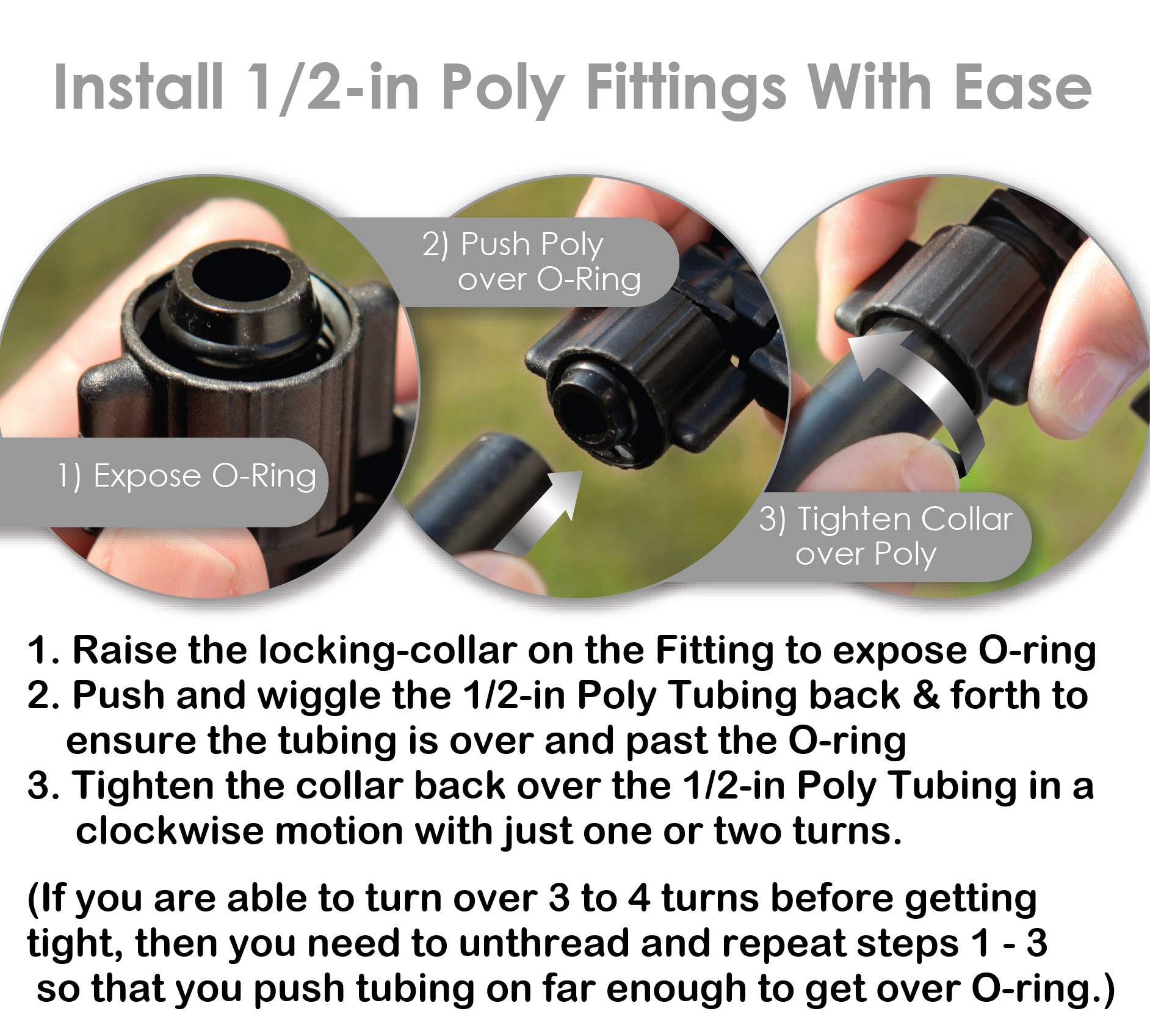

4) Pressure Regulator: When using our Micro Sprays with a water pressure over 50 PSI, use our 40 PSI Regulator (MLA-40PR), & when using Drippers, we highly suggest using our 25 PSI Regulator (MLD-25PR). 5) A 150 Mesh Filter (MLFF-41) is suggested for Drippers or when using our products with "well" water. 6) 1/2-in Poly Faucet Fitting (MLF-33), which connects to the 1/2-in Poly Tubing OR the 1/4-in Faucet Adapter (MLA-FAS), which connects to the 1/4-in Vinyl Tubing.
MAXIMUM RUNS
When installed on top of any of our Landscape Micro Spray Stake Assemblies (MLS-211, MLS-TAN, or MLS-BLA), this Micro Spray will only use 9 GPH up to 15 GPH depending on your water pressure and total amount of Micro Sprays installed. The following test results are using the Maximum Run of 300ft of ½” Poly Tubing with a water pressure of 40 to 50 PSI. The Micro Sprays at the beginning of the run will spray a higher GPH and they will use a lower GPH down at the end of the run. The lower the total amount of Micro Sprays used on a run the higher the GPH.
When using 40 to 35 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 12 GPH at the beginning of the run down to 9 GPH at the end of the run.
When using up to 30 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 12 GPH at the beginning of the run down to 11 GPH at the end of the run.
When using 25 to 20 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 14 GPH at the beginning of the run down to 13 GPH at the end of the run.
When using up to 15 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 15 GPH.
If you would like to run drippers with Micro Spray Stake Assemblies, you can run up to 300 ft of our 1/2-in Poly Tubing, installing up to 30 of our Micro Spray Stake Assemblies (MLS-211), (MLS-BLA), or (MLS-TAN) and fewer than 10 drippers off one faucet. If you want to run more than 10 drippers and have 30 micro spray stake assemblies installed, then replace each 10 GPH micro spray stake assembly with either 20 0.5 GPH drippers (MLD.5PC), 10 1 GPH drippers (MLD-PC1), or 5 2 GPH drippers (MLD-2PC).
Attach up to 6 of our Micro Spray Kits per single faucet
Minimum operating pressure for Timer: 15 PSI
Maximum operating pressure for Timer: 50 PSI
