This Premium All-In-One Micro Sprinkler Landscape & Garden Kit can water up to 535 sq. ft. of landscapes, gardens, shrubs, trees and more.
It includes a Mechanical Egg Timer, allowing you to manually set it for 15 to 120 minutes. It will turn off automatically once the time has elapsed. Also includes a 50 PSI Pressure Regulator to help prevent blowouts of Micro Sprays, 1/4-in connectors, and 1/2-in Poly Tubing.
The kit includes 100-ft of 1/2-in Poly Tubing to run through your landscapes and supply water to 10 Black Stake Assemblies, and it includes 6 of our 1/2-in Support Stakes to secure the 1/2-in Poly Tubing to the ground.
Each Stake Assembly is complete with a new 9 to 15 GPH Flow Restrictor, 27-in flexible 1/4-in black Vinyl Tubing, 13-in Black Stake Assembly, On/Off Control Valve, Vinyl Locking Collar, and a 3-in-1 half-circle, 4-ft radius Micro Spray. The kit also includes two 8-in Stake Extensions to add height to the Micro Sprays.
The kit also has 2 of our Micro Spray Pot Stakes, 1/4-in connectors (1/4-in Couplers -QTY 5. 1/4-in Elbow -QTY 1, 1/4-in Tee-QTY 1), and 10 ft. of 1/4-in Vinyl Tubing so you can run water from the 1/2-in Poly Tubing to two potted plants.
With the extra included six unique spray patterns, you get the coverage needed and the ability to adjust the spray pattern of each Stake Assembly with its adjustable On/Off Control Valve.
Our All-In-One Tool makes installation of the 1/4-in connectors easier and comes with a Cleaning Tool to clean Micro Sprays and the older model of our Violet Flow Controller. The kit also includes 4 Goof Plugs to seal any unused holes in the 1/2-in Poly Tubing.

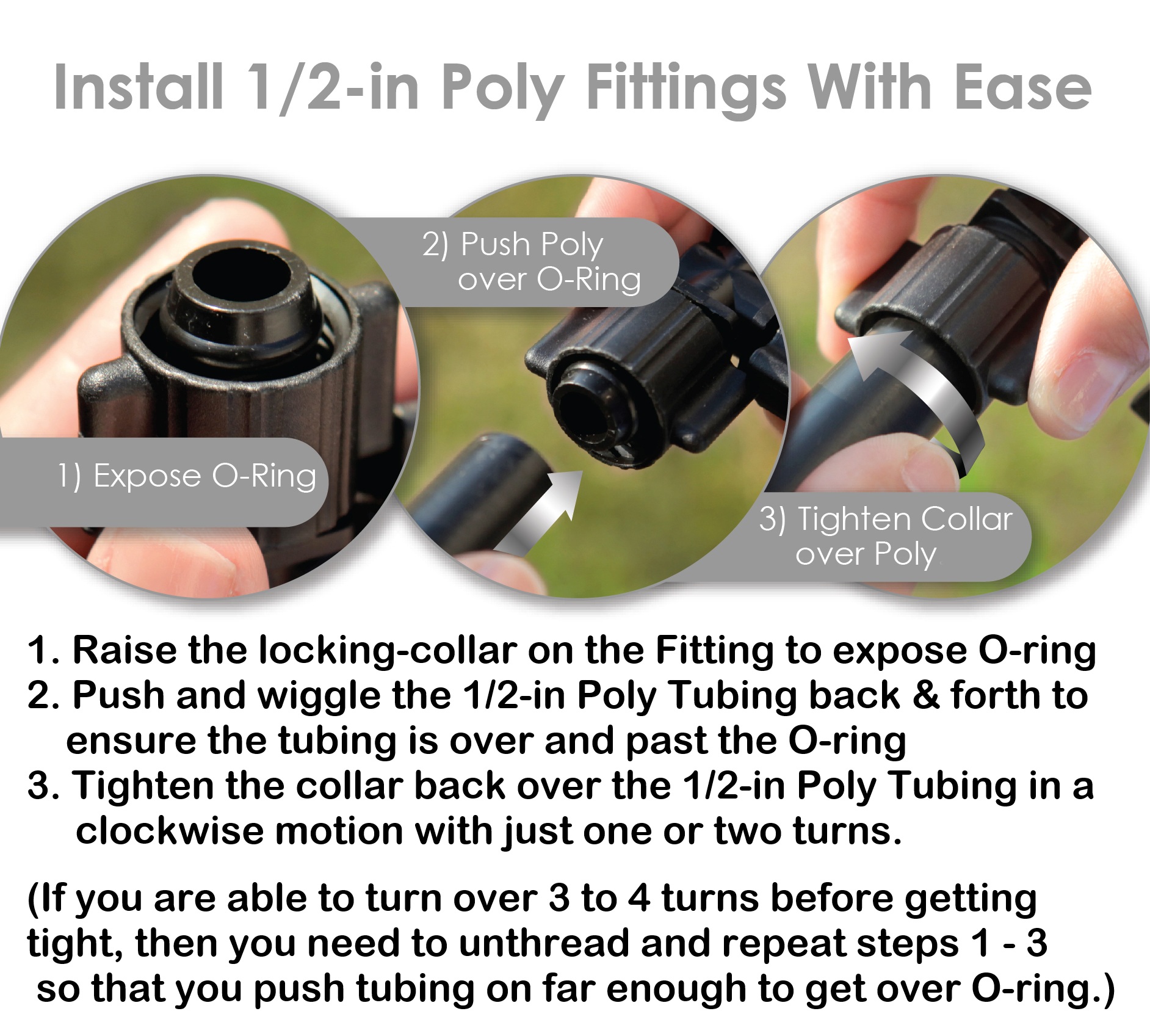

It includes a 1/2-in Coupler to either extend the system or to repair a broken line. It also includes a 1/2-in Tee Fitting to run the 1/2-in Poly in opposing directions and 2 End Crimpers and 1 End Cap Fitting to terminate your 1/2-in Poly Tubing line.
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system, it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:
INSTALL IN THIS ORDER:
Order of installation is critical for proper system function. Some parts mentioned here are NOT included in this kit but can be purchased separately. This is the order in which parts should be installed, starting from an outdoor water faucet.
1) Check your outdoor faucet to make sure there is an attached or built in Brass Anti-Siphon Vacuum Breaker that’s designed to prevent the backflow of fluids back into the potable/drinking water system.
2) Metal "Y" Fitting is suggested so you can still attach your garden hose.
4) Pressure Regulator: When using our Micro Sprays with a water pressure over 50 PSI, use the enclosed pressure regulator in the kit, & when using Drippers, we highly suggest using our 25 PSI Regulator (MLD-25PR) 5) 150 Mesh Filter ((MLFF-41),) is suggested for Drippers or when using our products with "well" water. 6) 1/2-in Poly Faucet Fitting (MLF-33), which connects to the 1/2-in Poly Tubing OR the 1/4-in Faucet Adapter (MLA-FAS), which connects to the 1/4-in Vinyl tubing. MAXIMUM RUNS
When installed on top of any of our landscape micro spray stake assemblies (MLS-211, MLS-TAN, or MLS-BLA), this Micro Spray will only use 9 GPH up to 15 GPH depending on your water pressure and total amount of Micro Sprays installed. The following test results are using the Maximum Run of 300 ft of ½” Poly
Tubing with a water pressure of 40 to 50 PSI. The Micro Sprays at the beginning of the run will spray a higher GPH and they will use a lower GPH down at the end of the run. The lower the total amount of Micro Sprays used on a run the higher the GPH.
When using 40 to 35 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 12 GPH at the beginning of the run down to 9 GPH at the end of the run.
When using up to 30 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 12 GPH at the beginning of the run down to 11 GPH at the end of the run.
When using 25 to 20 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 14 GPH at the beginning of the run down to 13 GPH at the end of the run.
When using up to 15 Landscape Micro Spray Stake Assemblies, the Micro Sprays will use approximately 15 GPH.
Attach up to 3 of these MLK- ALLN1 Micro Spray Kits per single faucet, or attach 6 of our Micro Sprinkler Landscaper & Shrub Kits (MLK-81, MLK-82T, or MLK-LG)
If you would like to run drippers with our Micro-Spray Stake Assemblies, you can run up to 30 of the Micro Spray Stake Assemblies (MLS-211, MLS-BLA, or MLS-TAN) and fewer than 10 drippers off one faucet. If you want to run more than 10 drippers and you already have 30 Micro Spray Stake Assemblies installed, then you would need to replace each of the 10 GPH Micro Spray Stake Assemblies with one of the following choices in drippers: 20 0.5 GPH drippers (MLD-.5PC). 10 1 GPH drippers (MLD-PC1), or 5 2 GPH drippers (MLD-2PC).
Minimum operating pressure for Timer: 15 PSI
Maximum operating pressure for Timer: 50 PSI
