Watch this YouTube video from CaliKim for a deeper dive into our Vegetable Garden Drip Kit:
https://www.youtube.com/watch?v=CZ_o-YlInEQ

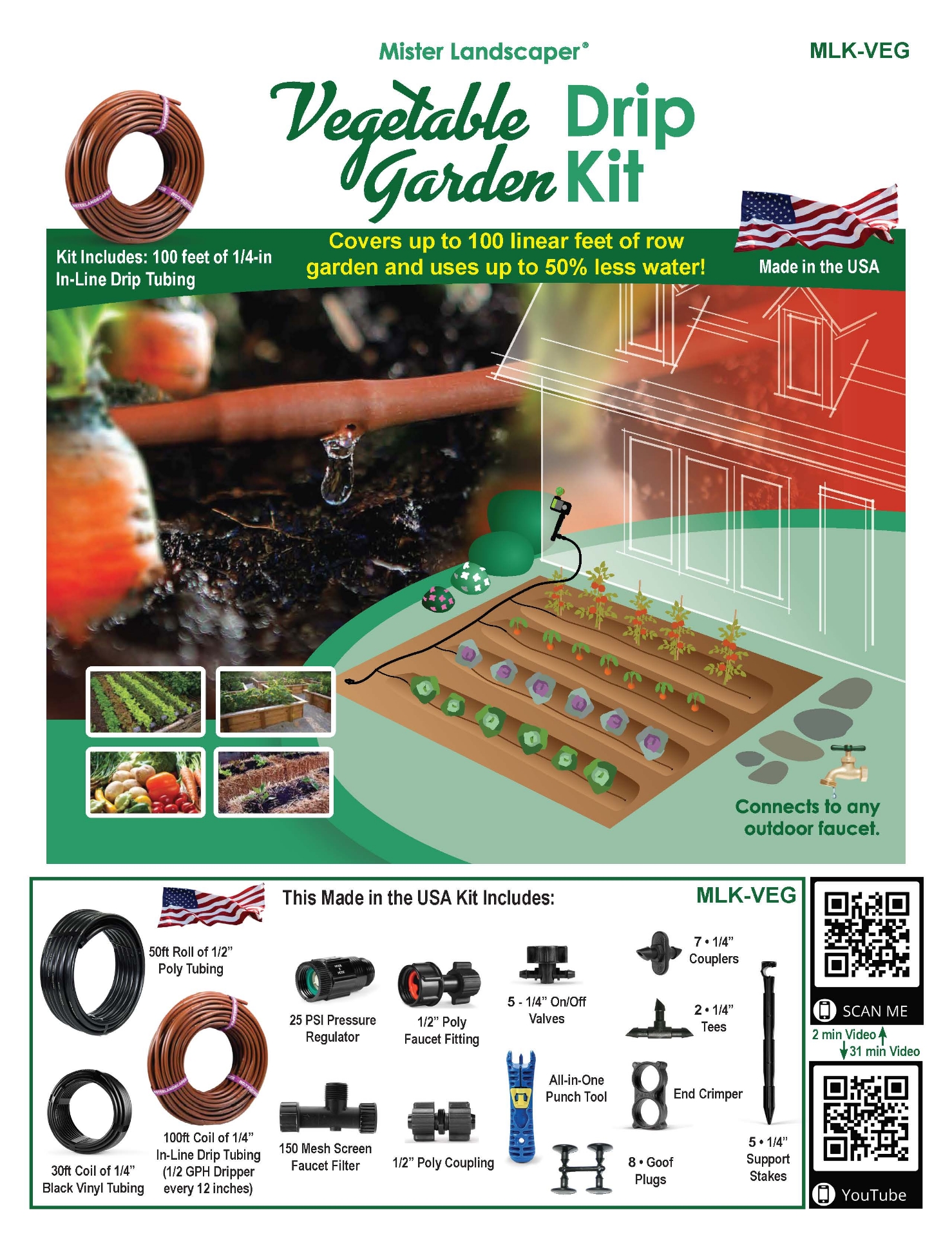

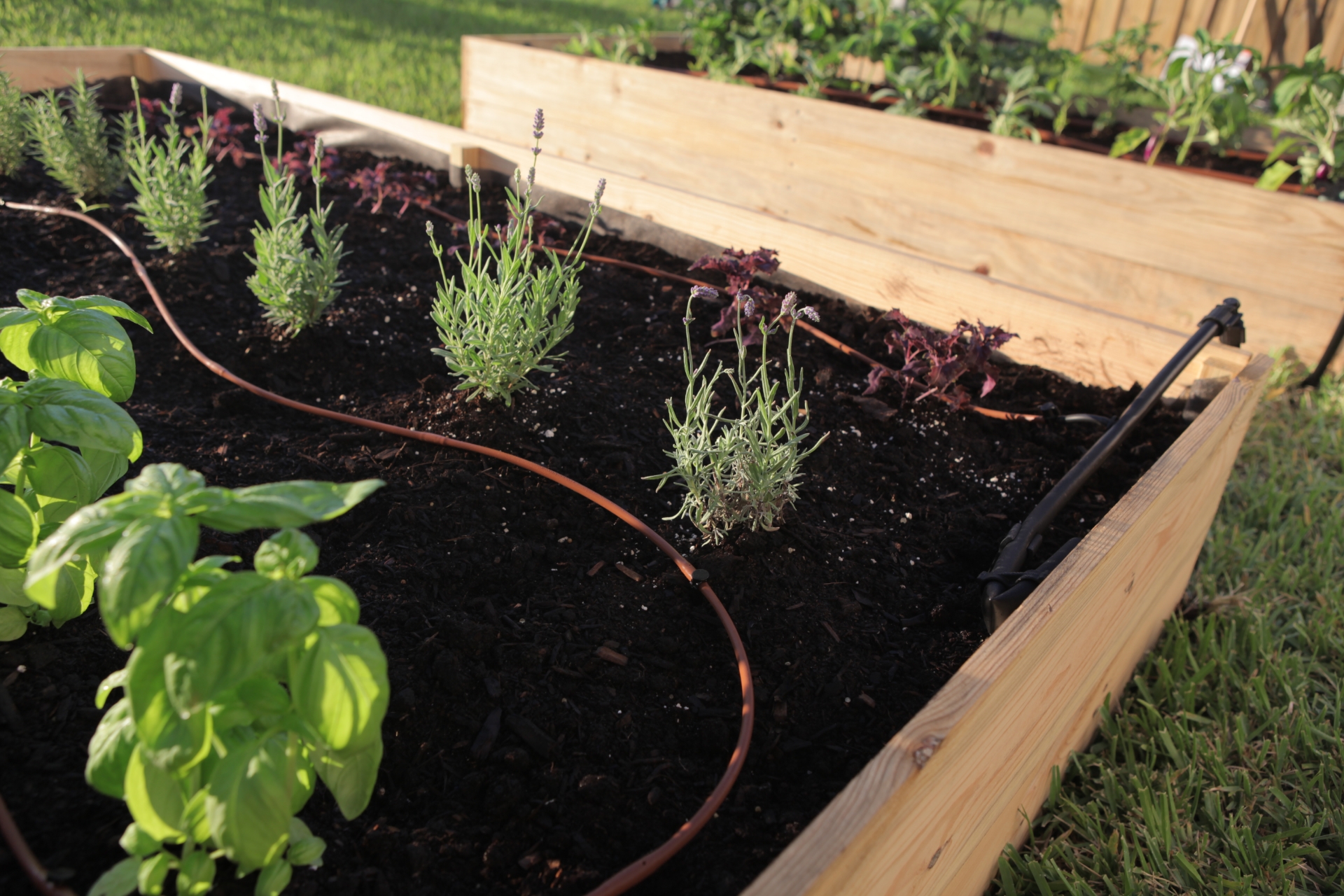

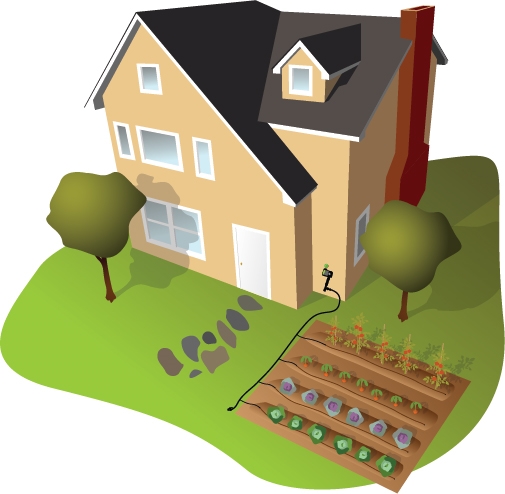

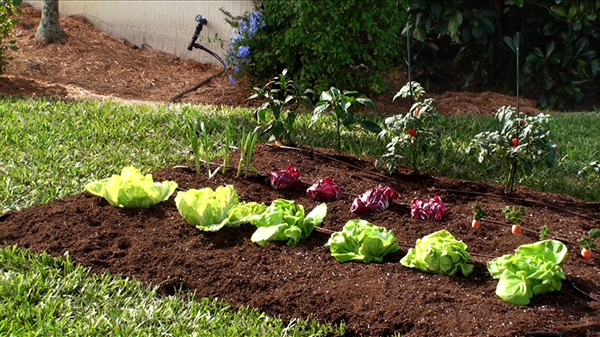

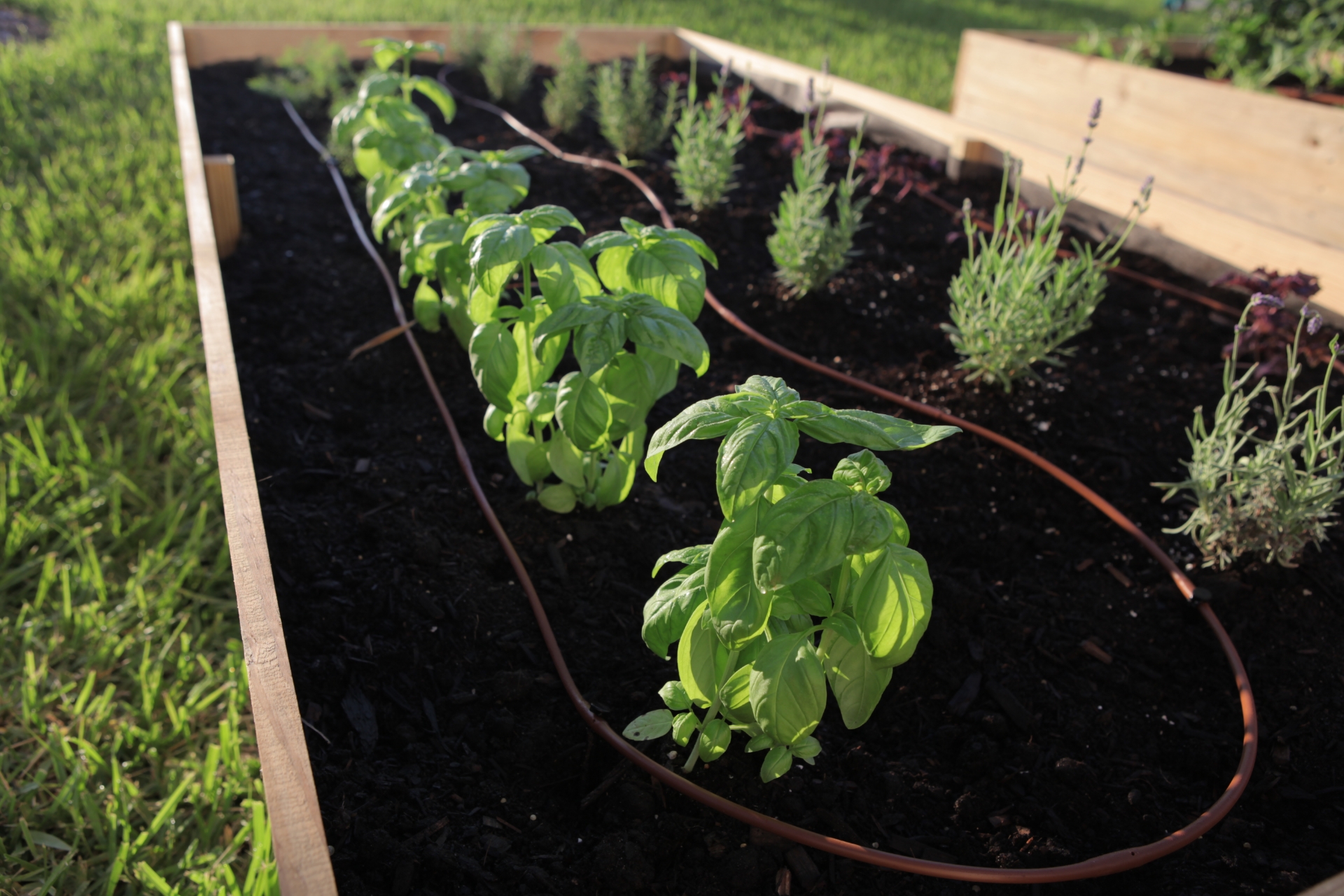

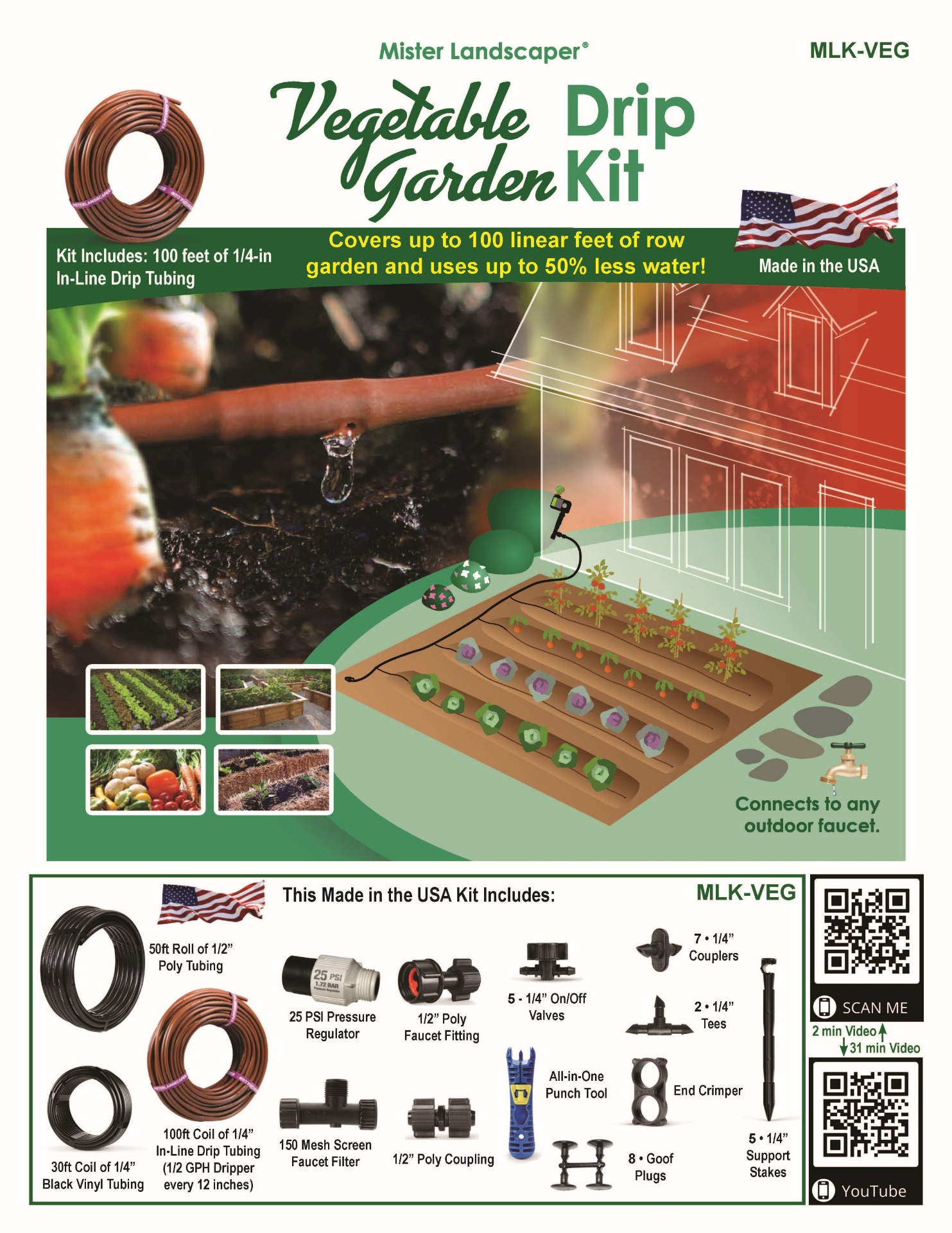

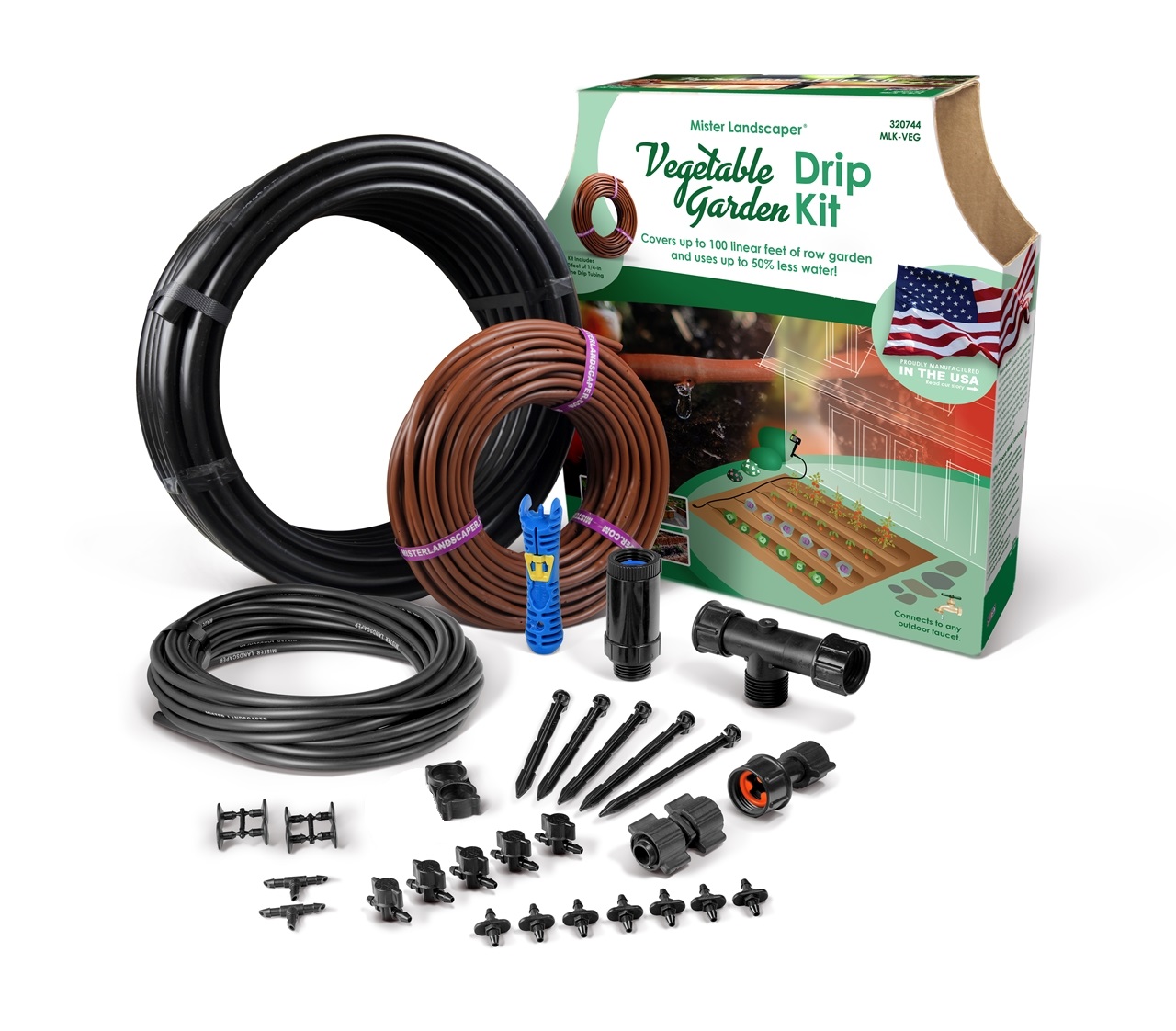

All-inclusive drip starter kit with everything needed to attach to an outside faucet and water up to 100-ft of Vegetable rows
Includes all outdoor faucet attachments to hook up and run 50-ft of 1/2-in poly tubing (mainline) to the Vegetable Garden area.

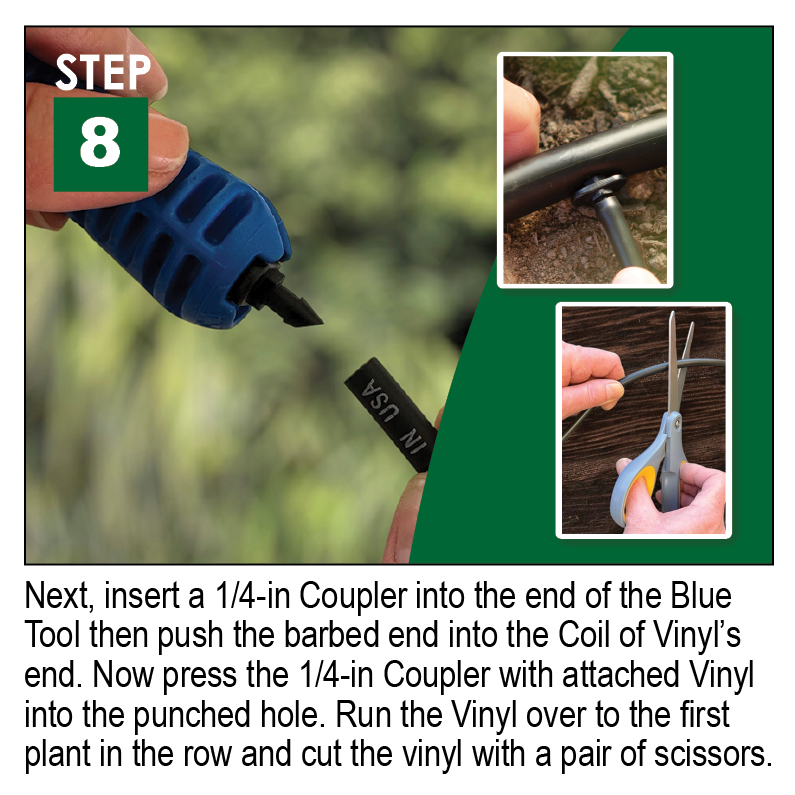

Includes all the components to attach the 1/4-in in-line dripper tubing to the 1/2-in poly tubing and to run the in-line dripper tubing down a row of vegetables. Run several individual rows of in-line drip tubing with a maximum of 50-ft per run. (Run up to 300 linear feet of 1/2-in poly and attach up to a total of 500-ft of 1/-4-in in line drip tubing if needed.)

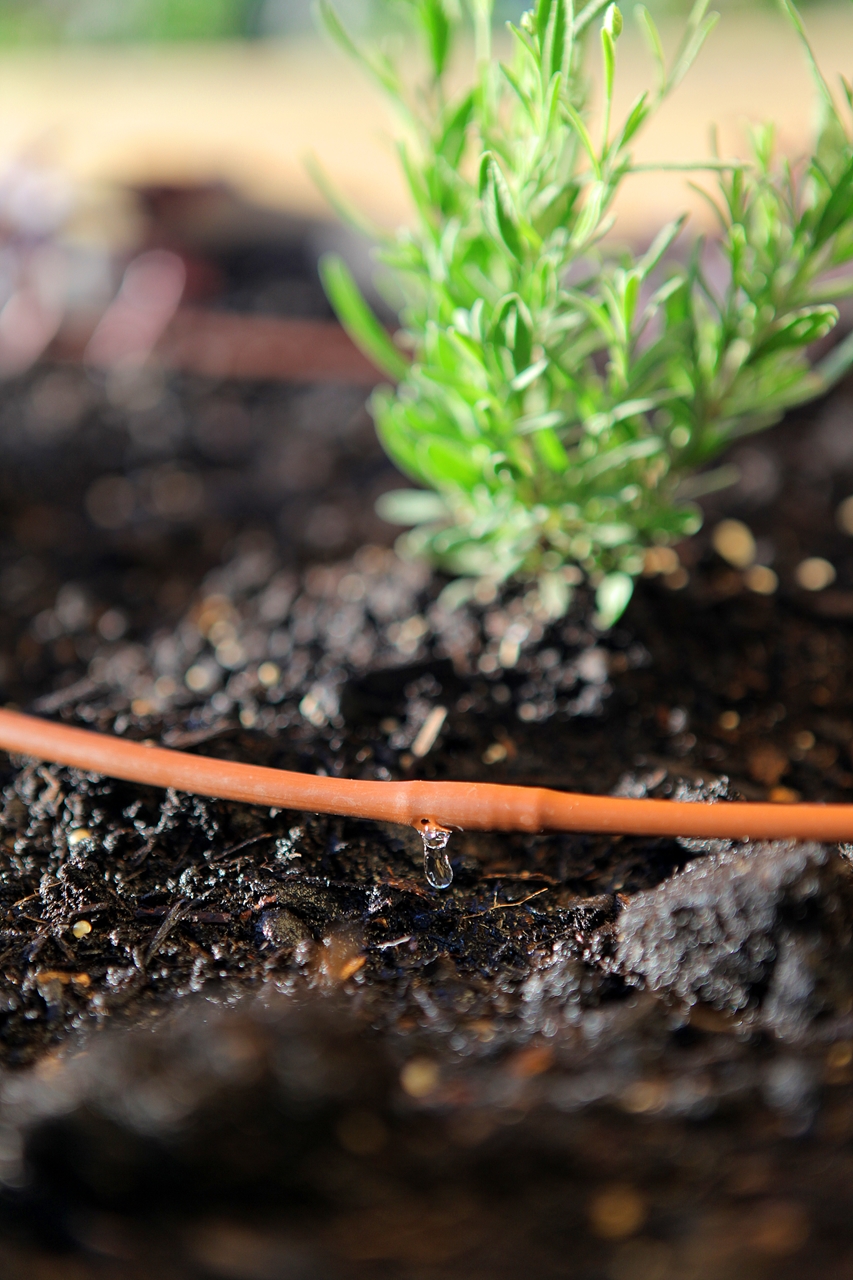

0.5 GPH drippers are molded into the 1/4-in tubing every 12-in.

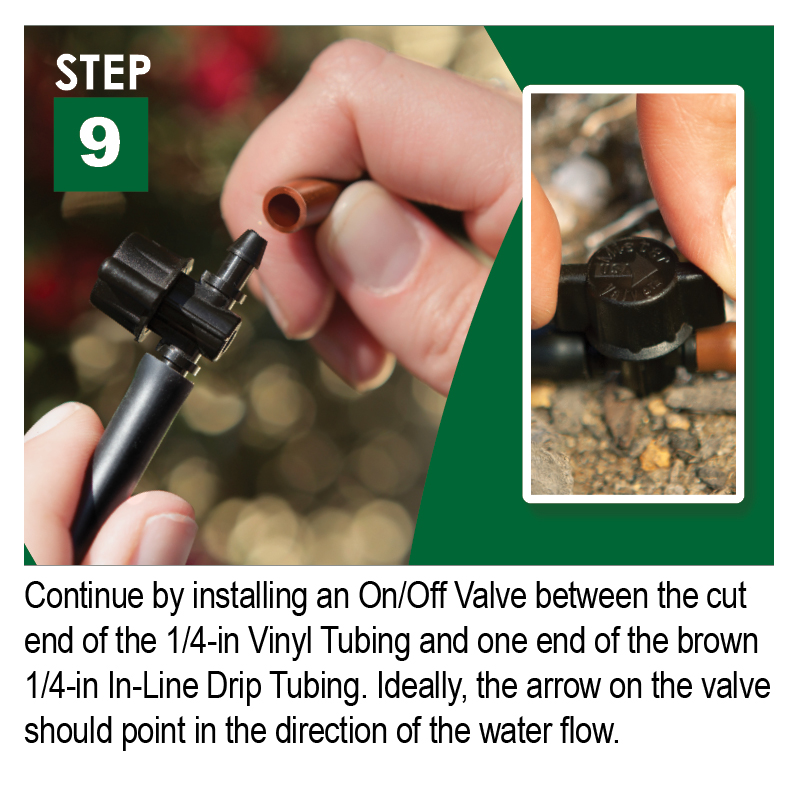

5 of the 1/4-in on/off valves can be used to turn on and off water supply to the 1/4-in in-line drip tubing that runs to the various seasonal vegetables.

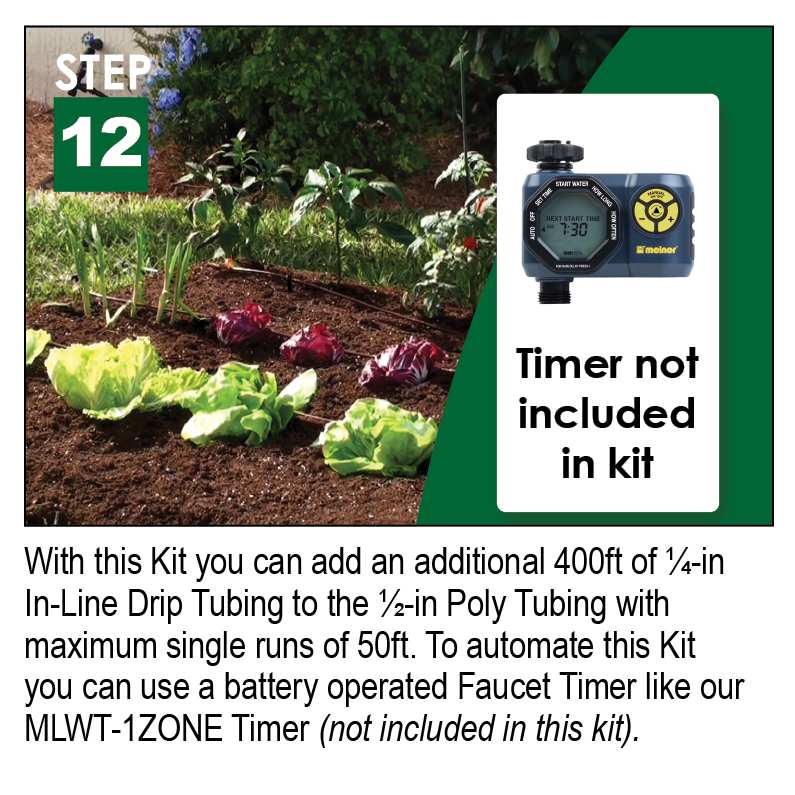

Expandable by attaching 4 more of these kits together, or by purchasing up to 4 extra rolls of 1/4-in in-line drip tubing (MLD-QDT100) to add on to this kit for a total of 500 linear feet.
Drippers and Drip Tubing should NEVER be buried
RECOMMENDATIONS & LIMITATIONS
When installing any irrigation system, it is important to be aware of manufacturer recommendations and potential system limitations. Please be aware of the following:

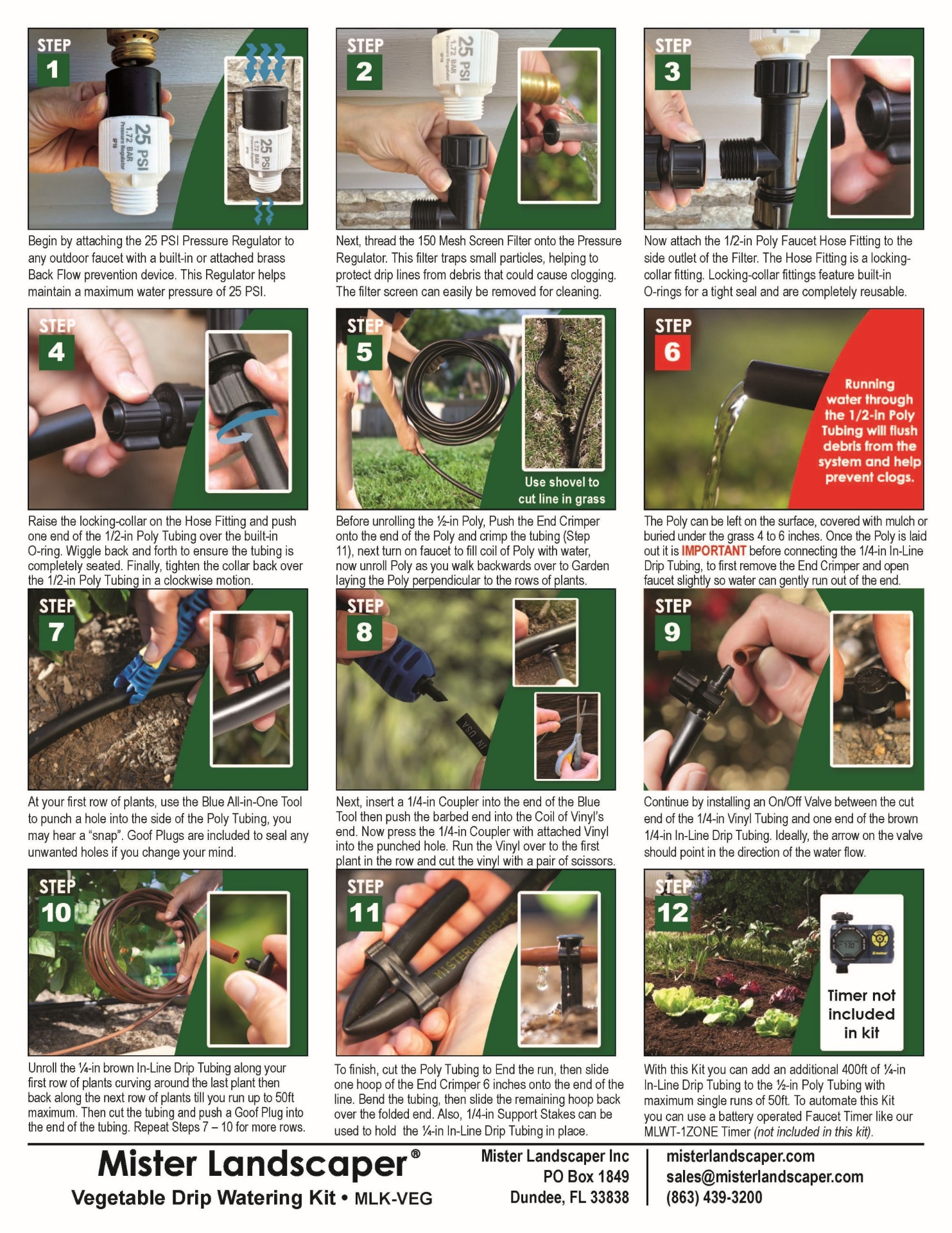

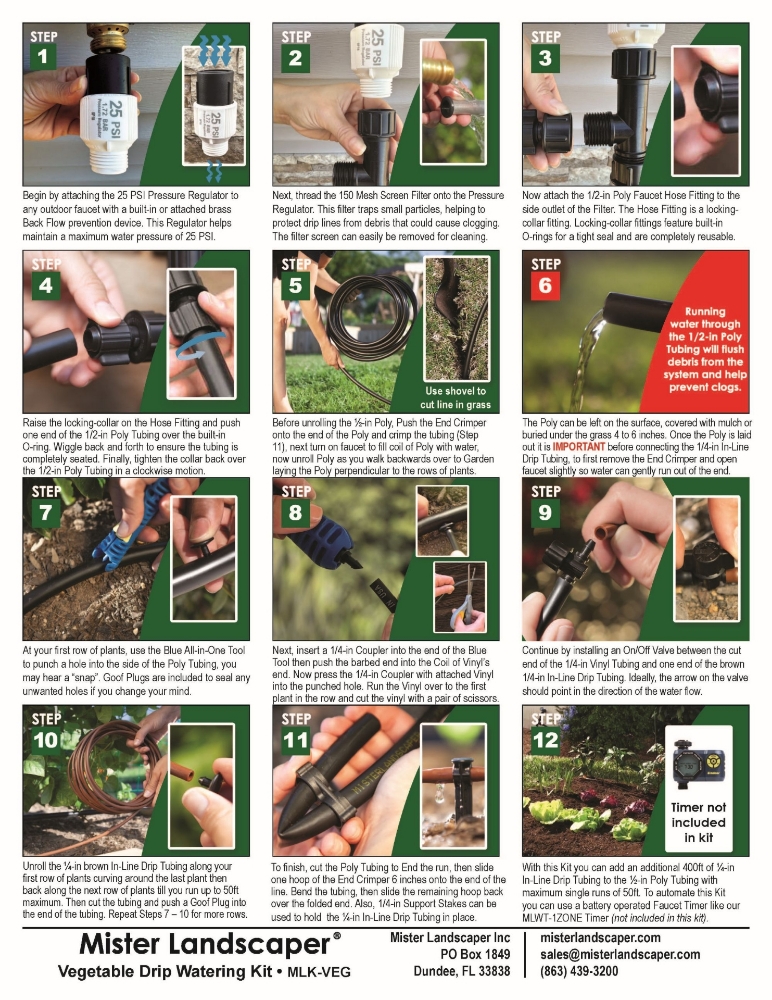

ORDER OF INSTALLATION:

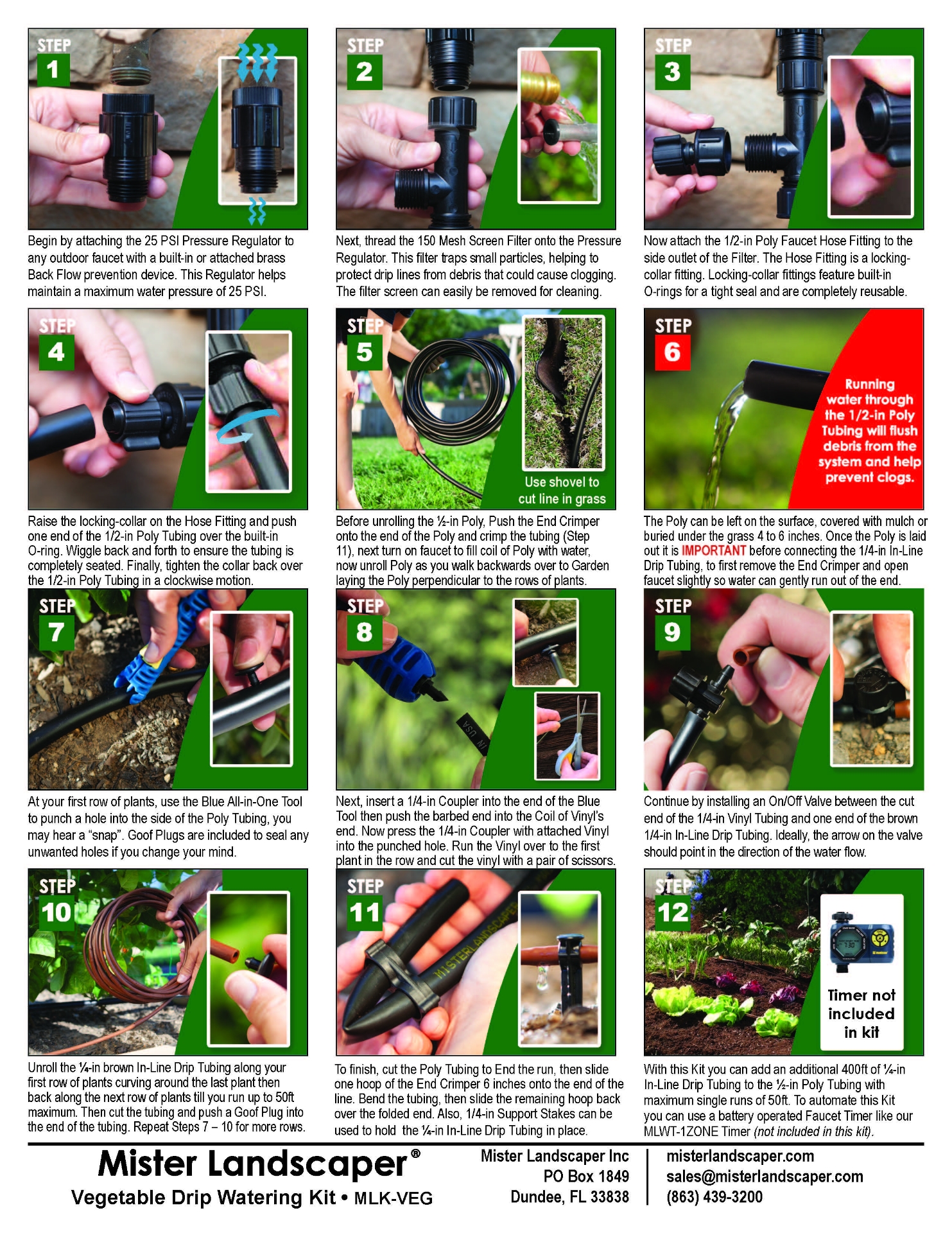

Order of installation is critical for proper system function. Some parts mentioned here are NOT included in this kit but can be purchased separately. This is the order of which parts should be installed, starting from the outdoor faucet.
1) Check your outdoor faucet to make sure there is an attached or built in Brass Anti-Siphon Vacuum Breaker that’s designed to prevent the backflow of fluids back into the potable/drinking water system.
2) A Metal "Y" Fitting is suggested so you can still attach your garden hose.

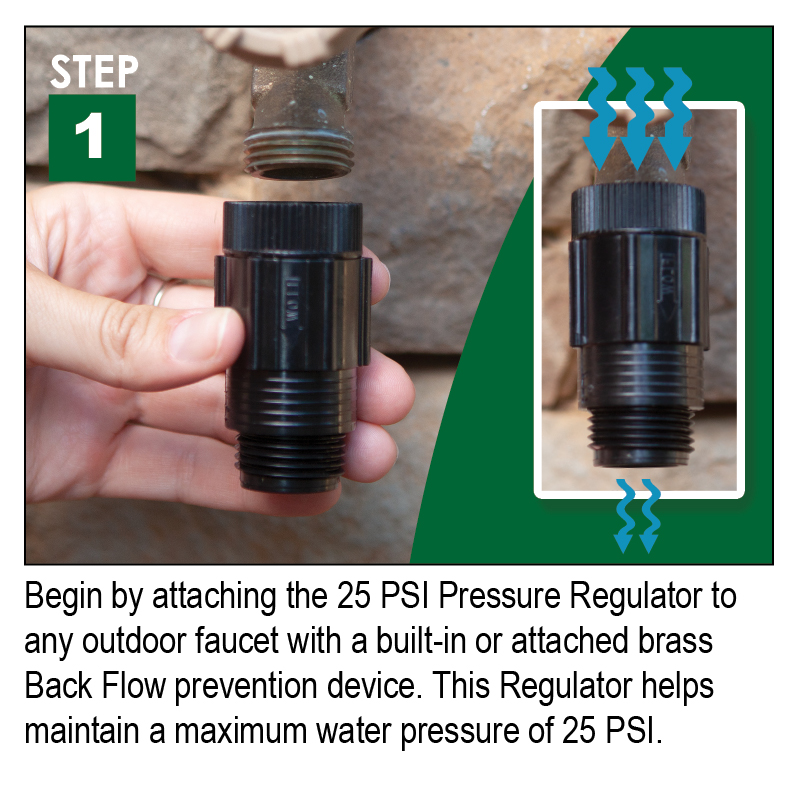

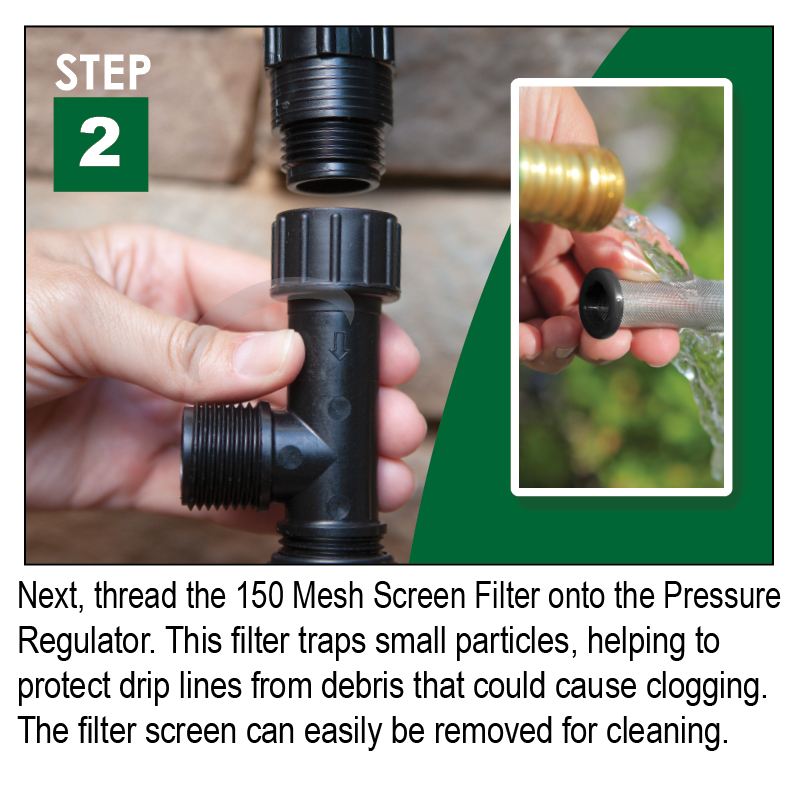

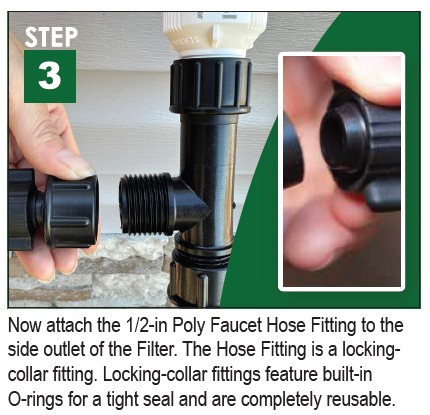

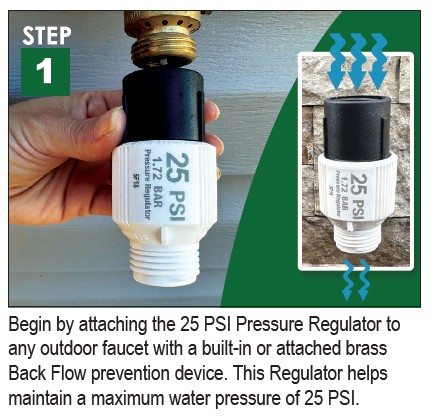

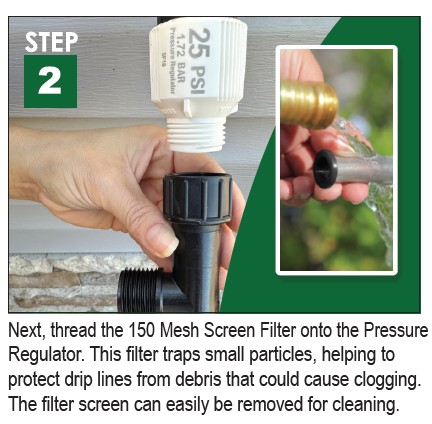

4) Pressure Regulator: When using our In-Line Dripper tubing in this kit, we highly suggest using our 25 PSI Regulator (MLD-25PR). 5) A 150 Mesh Filter (MLFF-41) is suggested for In-Line Dripper tubing and Drippers, or when using our products with "well" water. 6) 1/2-in Poly Faucet Fitting (MLF-33), which connects to the 1/2-in Poly Tubing OR the 1/4-in Faucet Adapter (MLA-FAS), which connects to the 1/4-in Vinyl Tubing. MAXIMUM RUNS
Run up to 300-ft of our 1/2-in poly tubing and attach up to a total of 500-ft of the 1/4-in In-Line Drip Tubing, connecting individual runs with a maximum of 50-ft runs of our 1/4-in In-Line Drip Tubing that has a built-in .5 GPH dripper every 12 inches. Each separate line of 1/4-in In-Line Drip Tubing can have up to a 15-ft lead-in of our 1/4-in vinyl tubing between the 1/2-in poly and the 1/4-in In-Line Drip Tubing
Minimum operating pressure for In-Line Drip Tubing: 5 to 7 PSI
Maximum operating pressure for In-Line Drip Tubing: 25 PSI
